Deep Hole Drilling Machine
RD500 (2 Spindles)

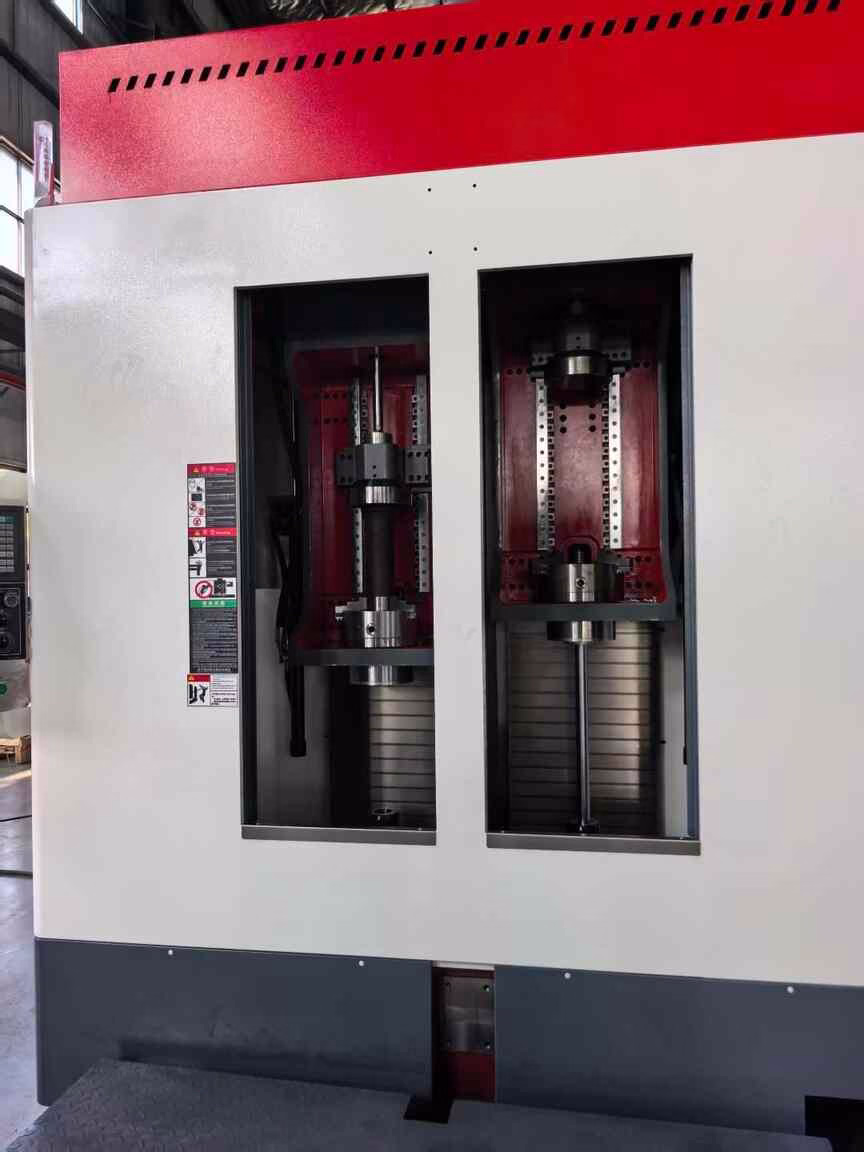

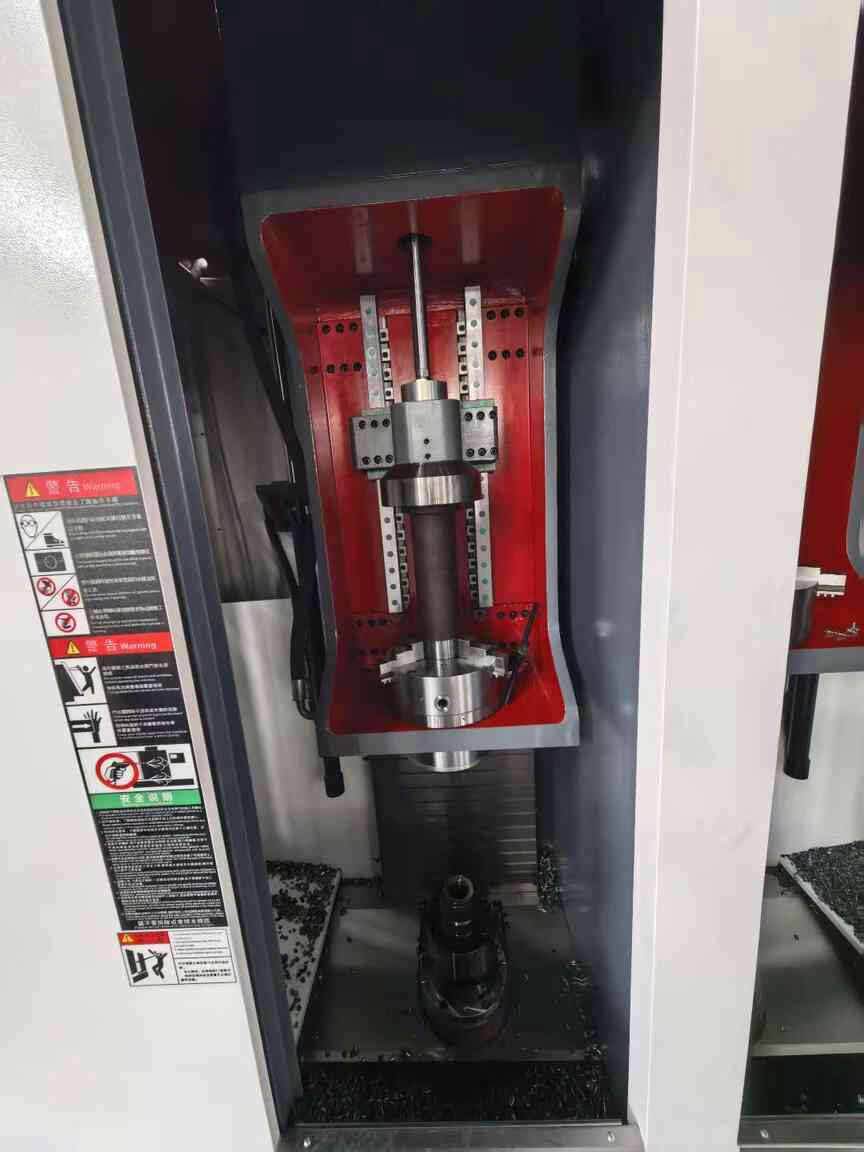

Vertical Deep Hole Drilling Machine
Inverted vertical deep hole drilling machine with dual spindles. Supports both gun drilling (3-35mm) and BTA drilling (25-50mm). Max drilling depth 500mm.
Gallery
Our Vertical Deep Hole Drilling Machine is designed for industries that require flexible, high-precision drilling solutions. With the ability to seamlessly switch between BTA drilling and Gundrilling, this machine offers versatility for a wide range of applications, making it perfect for companies in the aerospace, automotive, and heavy machinery sectors.
Specifications
Technical Specifications
| Drilling Diameter (Gun Drill) | 3 – 35 mm |
| Drilling Diameter (BTA) | 25 – 50 mm |
| Max Drilling Depth | 500 mm |
| Z-Axis Stroke | 500 mm |
| Spindle Max RPM | 0 – 6000 rpm |
| Spindle Feed | 0 – 1500 mm/min |
| Spindle Motor Power | 15 × 2 kW |
| Feed Motor Power | 2.5 × 2 kW |
| Workpiece Max OD | 155 mm |
| Workpiece Max Length | 500 mm |
| Coolant Pressure | 0 – 10 MPa |
| Coolant Flow | 100 L/min |
| Coolant Tank Volume | 800 L |
| Total Power | 45 kW |
| Machine Weight | 5.8 Tons |
| Machine Footprint | 3100 × 2800 mm |
| Max Machine Height | 3500 mm |
| CNC Controller | Syntec 21MA-E (Siemens/Fanuc optional) |
Features
Key Features
Flexible BTA + Gundrilling
Effortlessly switch between BTA deep hole drilling (25-50mm) and gundrilling (3-35mm) on the same machine.
High Efficiency
Designed for drilling round bars up to 500mm depth, reducing cycle times and improving throughput.
Premium Components

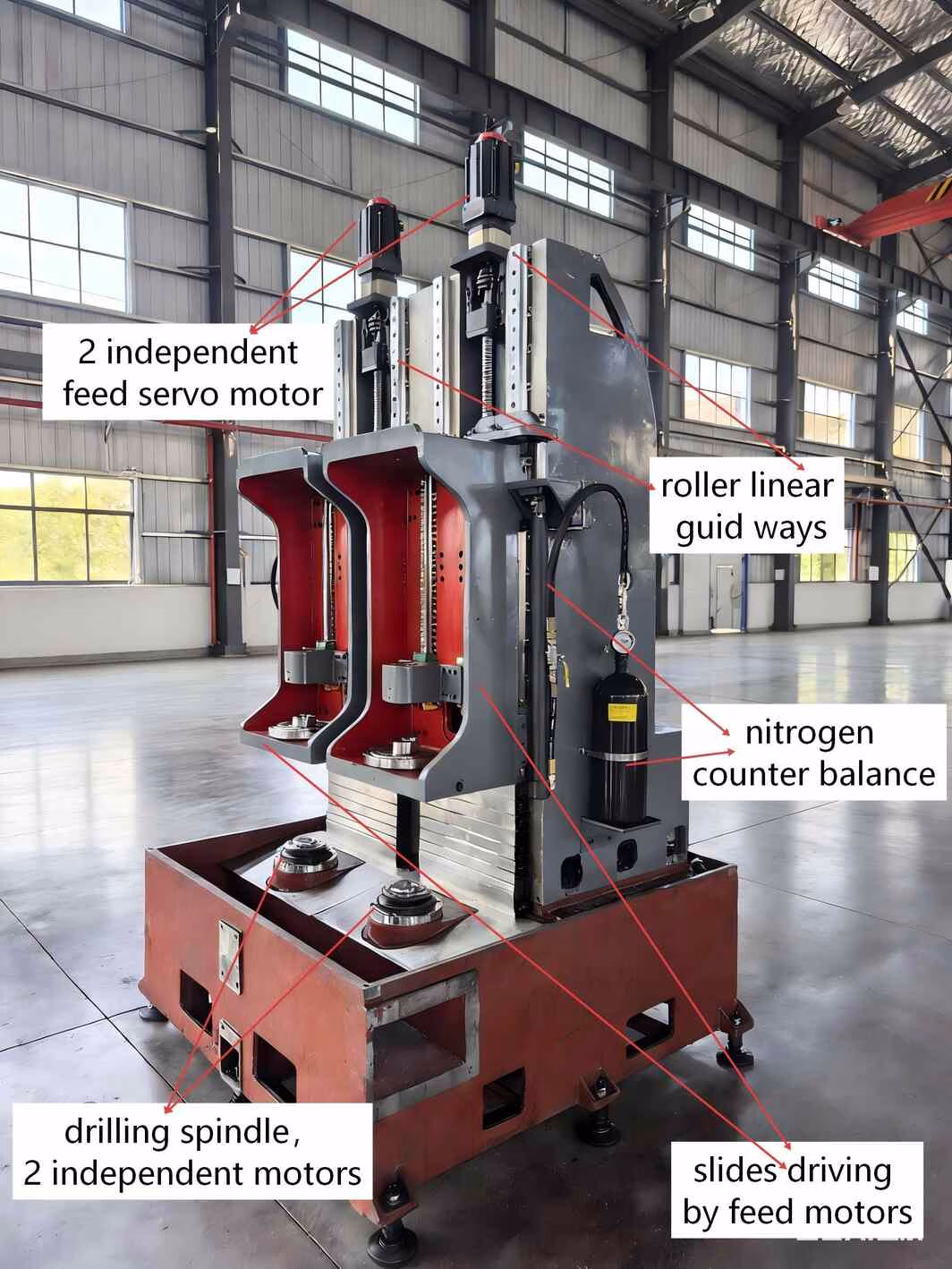

Taiwan Hiwin roller linear guides, NSK bearings, Schneider electrical parts, and hydraulic system for precision and reliability.
Fully Equipped
Full protection cover with safety door, chips conveyor, coolant system with oil chiller, auto filtration, and auto lubrication as standard.
Increased Productivity
BTA + Gundrilling flexibility combined with optimized coolant system and efficient design reduces cycle times for faster turnaround.
Reduced Maintenance
Auto filtration and lubrication systems with high-quality NSK bearings and Hiwin guides ensure minimal maintenance and long-term reliability.
Cost-Effective Solution
Minimizes material waste and reduces the need for secondary operations, delivering precision and speed at lower cost.
Applications
Applications
Aerospace deep hole drilling — turbine blades, structural parts, engine components
Automotive — engine blocks, crankshafts, and critical drivetrain components
Heavy machinery — hydraulic cylinders, pumps, and heavy-duty components
Parts requiring BTA and gun drilling on the same machine
