Deep Hole Drilling Machine
RD3020-06S
Deep Hole Drilling Machine for Steel Plate
Specialized deep hole drilling machine for steel plate and tube sheet applications. Dual-spindle design, hole depth 800mm, max workpiece diameter 3000mm.
Gallery
Specifications
Technical Specifications
| Hole Drilling Diameter (Gun Drill) | 10 – 20 mm |
| Hole Drilling Diameter (BTA) | 20 – 40 mm |
| Hole Depth Range | 800 mm |
| Maximum Workpiece Diameter | 3000 mm |
| X-Axis Travel | 3000 mm |
| Y-Axis Travel | 2000 mm |
| Z-Axis Travel | 650 mm |
| Spindle Quantity | 2 pcs |
| Centerline Spacing | 170 – 220 mm (adjustable) |
| Spindle Speed | 100 – 3000 rpm |
| Feed Speed | 0 – 3000 mm/min |
| Spindle Motor Power | 15 kW |
| X-Axis Servo Motor | 40 N.m |
| Y-Axis Servo Motor | 40 N.m |
| Z-Axis Servo Motor | 22 N.m |
| W-Axis Servo Motor | 22 N.m |
| V-Axis Servo Motor | 30 N.m |
| Total Power | 40 kW |
| Coolant Pressure | 2 – 10 MPa |
| Coolant Flow Rate | 10 – 200 L/min |
| Oil Tank Capacity | 2000 L |
| Worktable Dimensions | 3000 × 2000 mm |
| Max Load Capacity | 20 Tons |
| Standing Boards | 800 × 800 × 2700 mm, 2 pcs |
| Machine Weight | 50 Tons |
| Machine Footprint | 5500 × 7500 mm |
| Overall Height | 5000 mm |
Features
Key Features
High-Performance Materials
Specially developed cemented carbide inserts with exceptional bending resistance and hardness.
Superior Durability
Specialized coating treatment for outstanding wear resistance and extended service life.
Precision Engineering
High accuracy with minimal outer diameter tolerance, ensuring precision in critical applications.
Innovative Design
Reverse-staggered tooth arrangement at the center reduces drilling resistance and improves impact resistance.
Long Service Life
Advanced design and high-quality materials reduce tool replacement frequency for cost savings.
Applications
Applications
Steel plate deep hole drilling

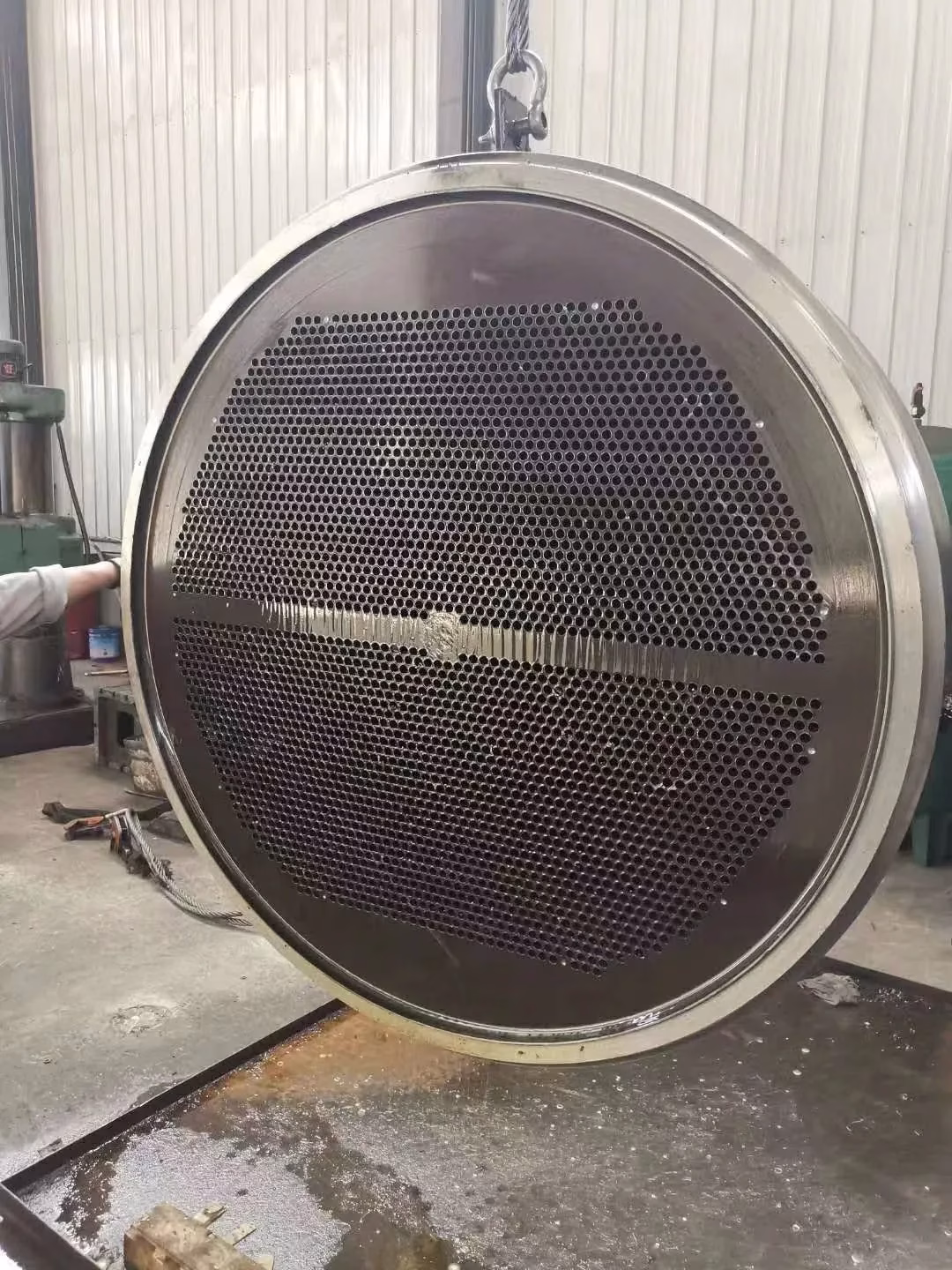

Tube sheet drilling for heat exchangers
Large format plate drilling
Structural steel component drilling
Ready to Optimize Your Deep Hole Drilling?
Share your application requirements with our engineering team and receive a tailored machine recommendation and quote within 24 hours.
