Multi Spindles Gun Drilling Machine
Multi-spindle small gun drilling machine for precision small-diameter holes. Drilling range 3-16mm, max depth 1000mm, spindle speed up to 6000 RPM.

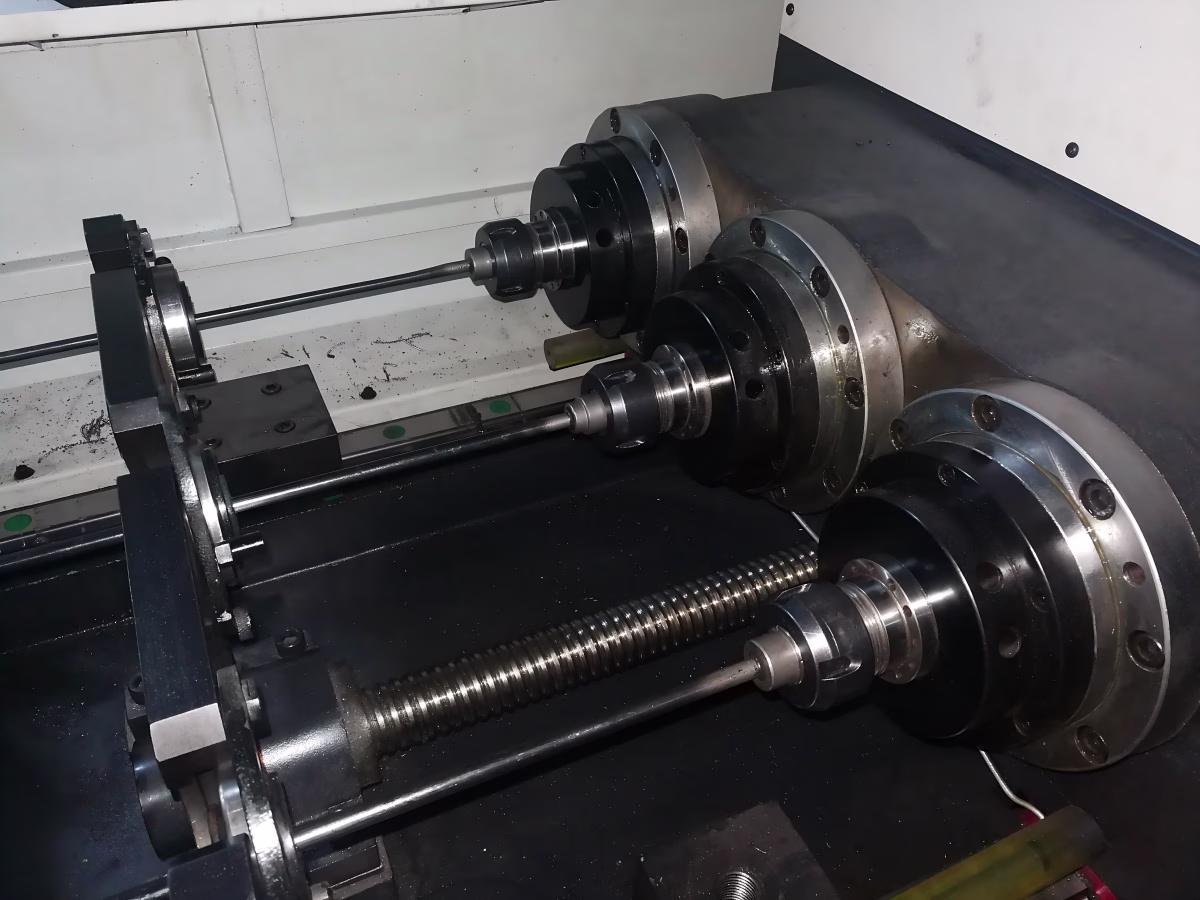

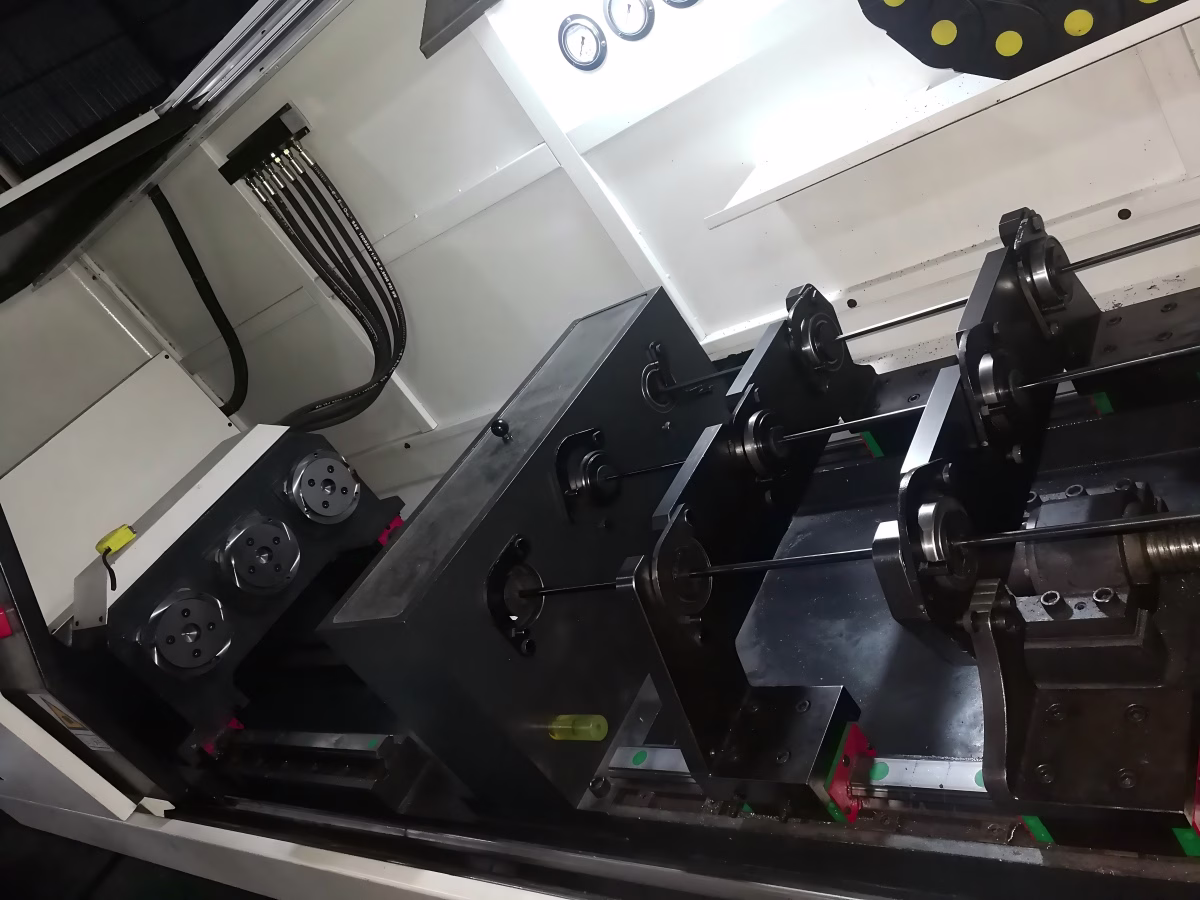

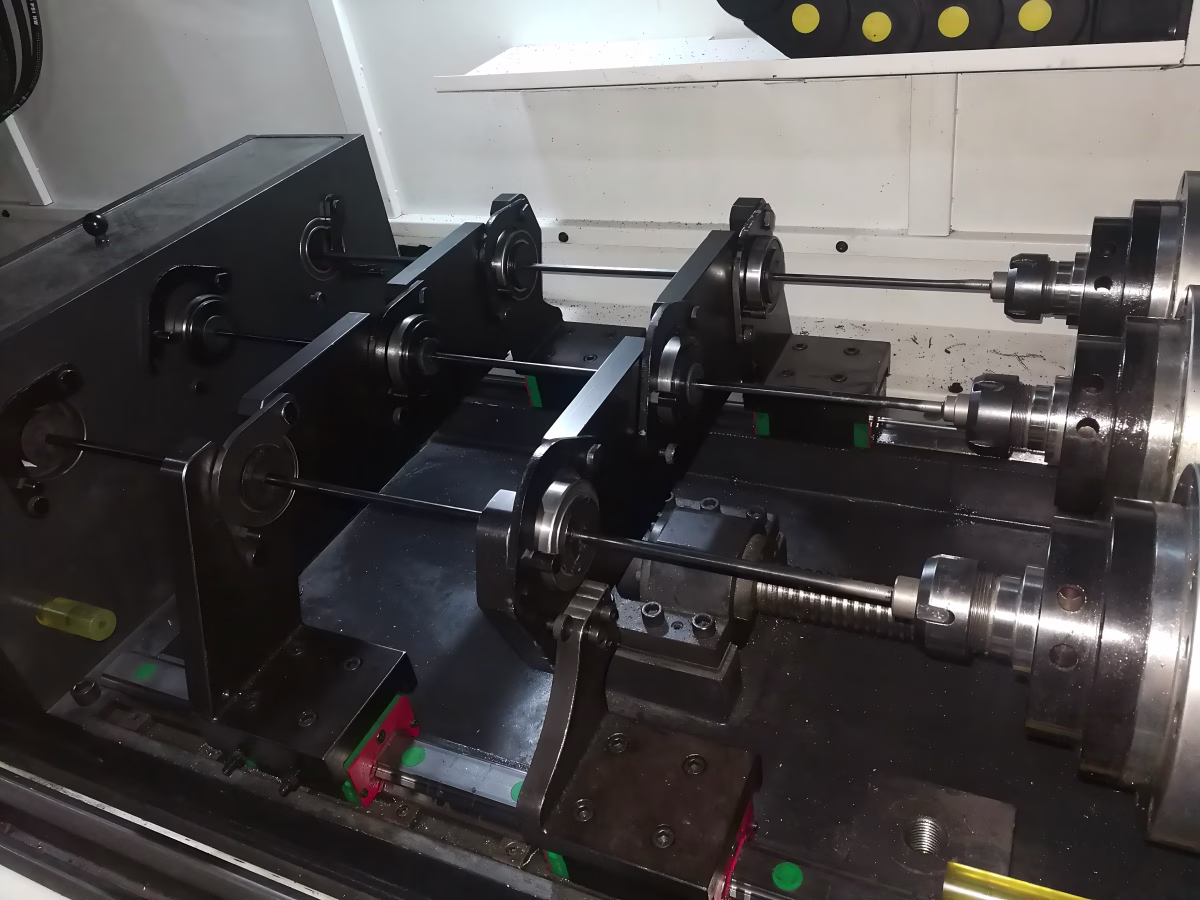

Gallery
Discover the power and precision of our Small Gun Drilling Machine, designed for high-accuracy drilling in a variety of materials. Ideal for small-diameter holes ranging from Φ3mm to Φ16mm, this machine offers exceptional drilling depth and precision, making it the perfect solution for intricate and detailed manufacturing processes.
Specifications
Technical Specifications
| Drilling Range | 3 – 16 mm |
| Max Drilling Depth | 1000 mm |
| Spindle Max RPM | 6000 rpm |
| High Pressure Oil Pump | 15 kW (servo type, self volume adjustment) |
Features
Key Features
Drilling Range
Φ3mm to Φ16mm small-diameter range for precision deep hole drilling applications.
Max Drilling Depth
Up to 1000mm drilling depth for deep hole requirements in intricate components.
High-Speed Spindle
Maximum speed of 6000 RPM for quick and efficient drilling operations.
Advanced Cooling System
Ensures optimal performance and extended tool life during production runs.
Customizable Options
Suitable for a wide range of industries including aerospace, automotive, and electronics.
Applications
Applications
Precision machining for small components
Gun drilling for high-performance parts
Custom drilling in hard-to-reach areas
Ready to Optimize Your Deep Hole Drilling?
Share your application requirements with our engineering team and receive a tailored machine recommendation and quote within 24 hours.
