Deep Hole Drilling Machine
RD1000-2S
Round Rod Deep Hole Drilling Machine (RD1000-2S)
2-spindle gun drilling machine for round rod center hole drilling. Drilling range 3-25mm, workpiece length up to 1 meter. Siemens Sinumerik 828D CNC controller.

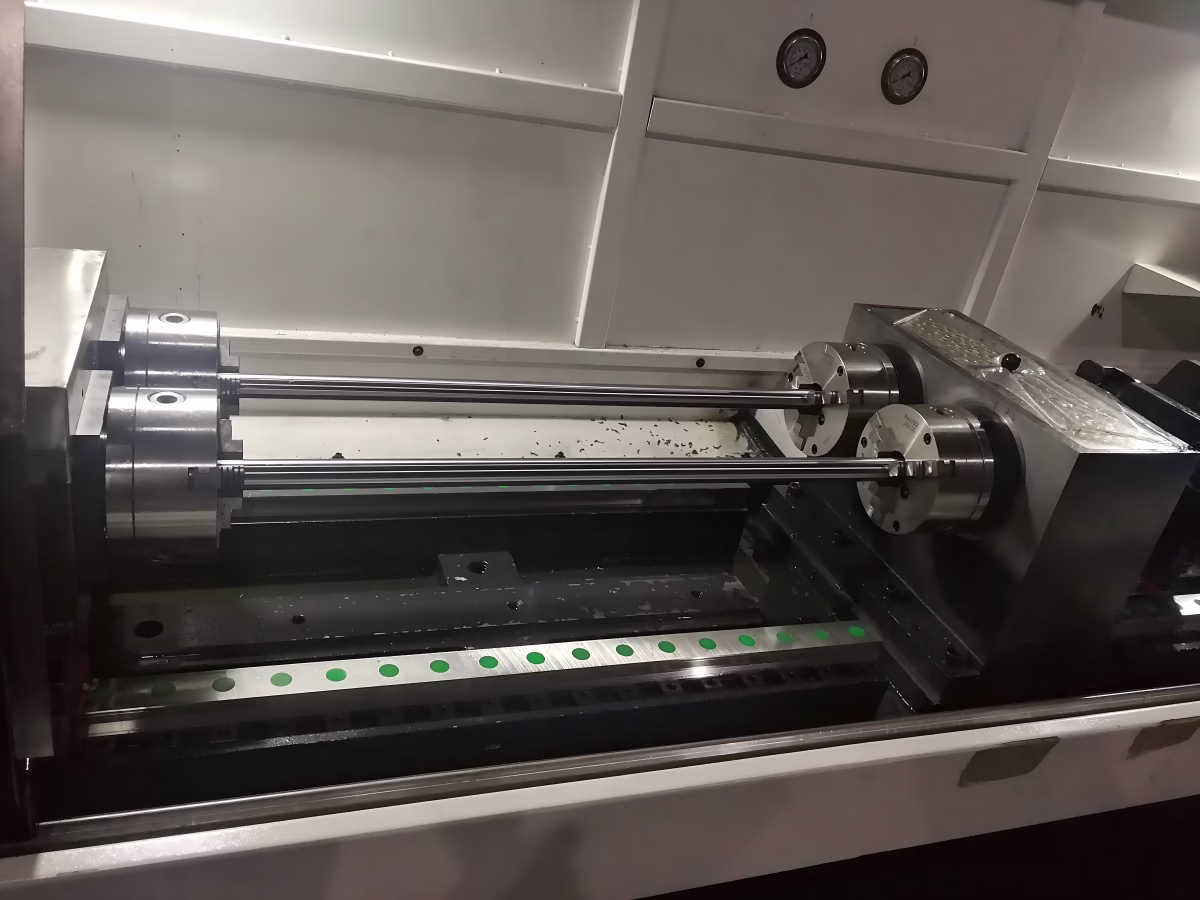

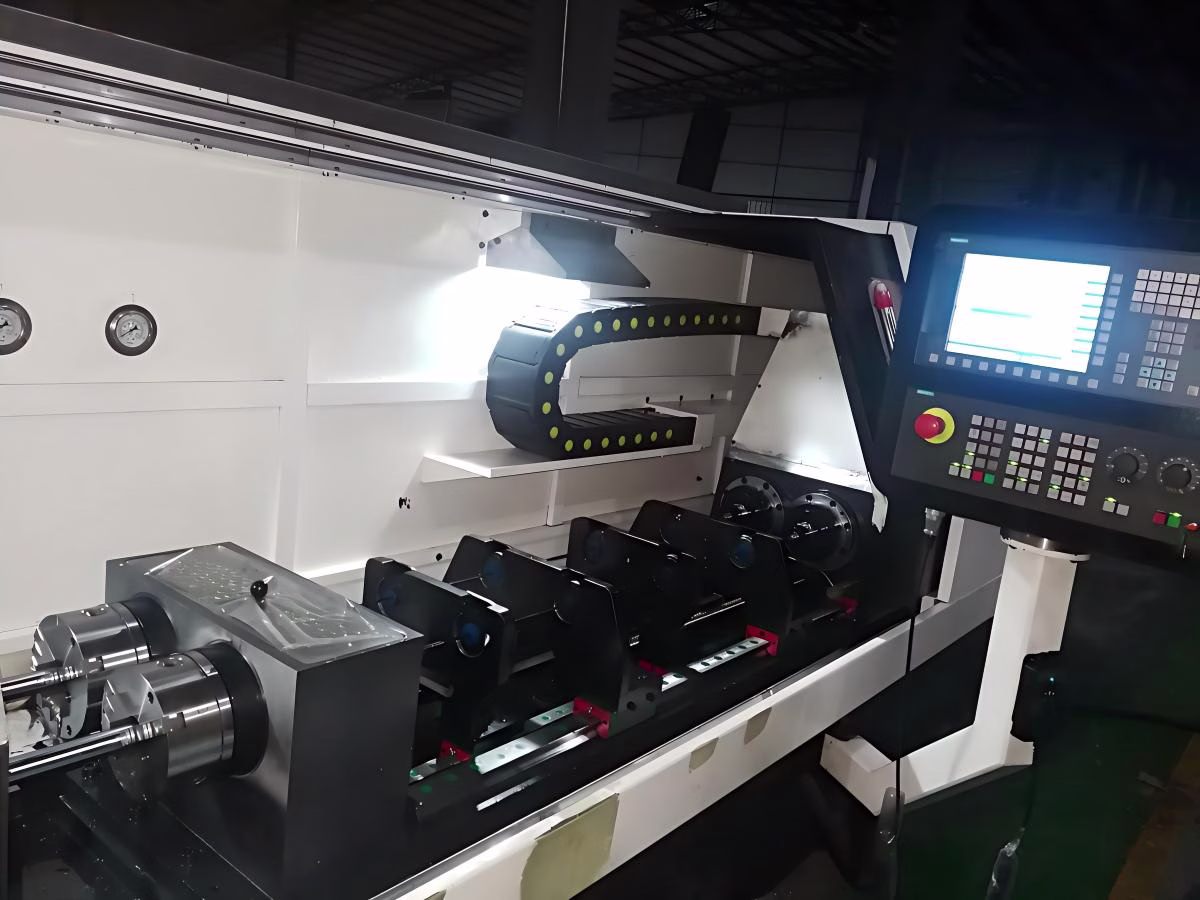

Gallery
Central hole drilling on round workpieces with gun drilling or BTA deep hole drilling. Sub-spindle counter rotation results in excellent concentricity and surface quality. Available with Siemens Sinumerik 828D, Taiwan Syntec, or FANUC CNC controller options.
Specifications
Technical Specifications
| Drilling Range | 3 – 25 mm (customizable) |
| Max Drilling Depth | 1000 mm (customizable) |
| Spindle Quantity | 2 |
| Spindle Motor Power | 11 kW (Siemens) |
| CNC Controller | Siemens Sinumerik 828D (Std) / Syntec / FANUC (Opt) |
Features
Key Features
Dual Spindle Design
Two spindles for simultaneous drilling of round rod center holes, doubling productivity.
Siemens CNC Control
Sinumerik 828D controller for precise programming and reliable operation.
Customizable Configuration
Drilling range and depth can be customized for specific round rod applications.
Sub-Spindle Counter Rotation
Counter rotation system ensures excellent concentricity in center hole drilling.
Applications
Applications
Round rod center hole drilling
Shaft center line drilling
Cylindrical part through-hole drilling
Bar stock deep hole drilling
