Three Axis CNC Deep Hole Drilling Machine RD2012-16H
Large three-axis CNC deep hole drilling machine for big molds. Gundrilling 3-50mm (up to 60mm), depth 1600mm. BTA optional (25-80mm). The most popular model.
Gallery

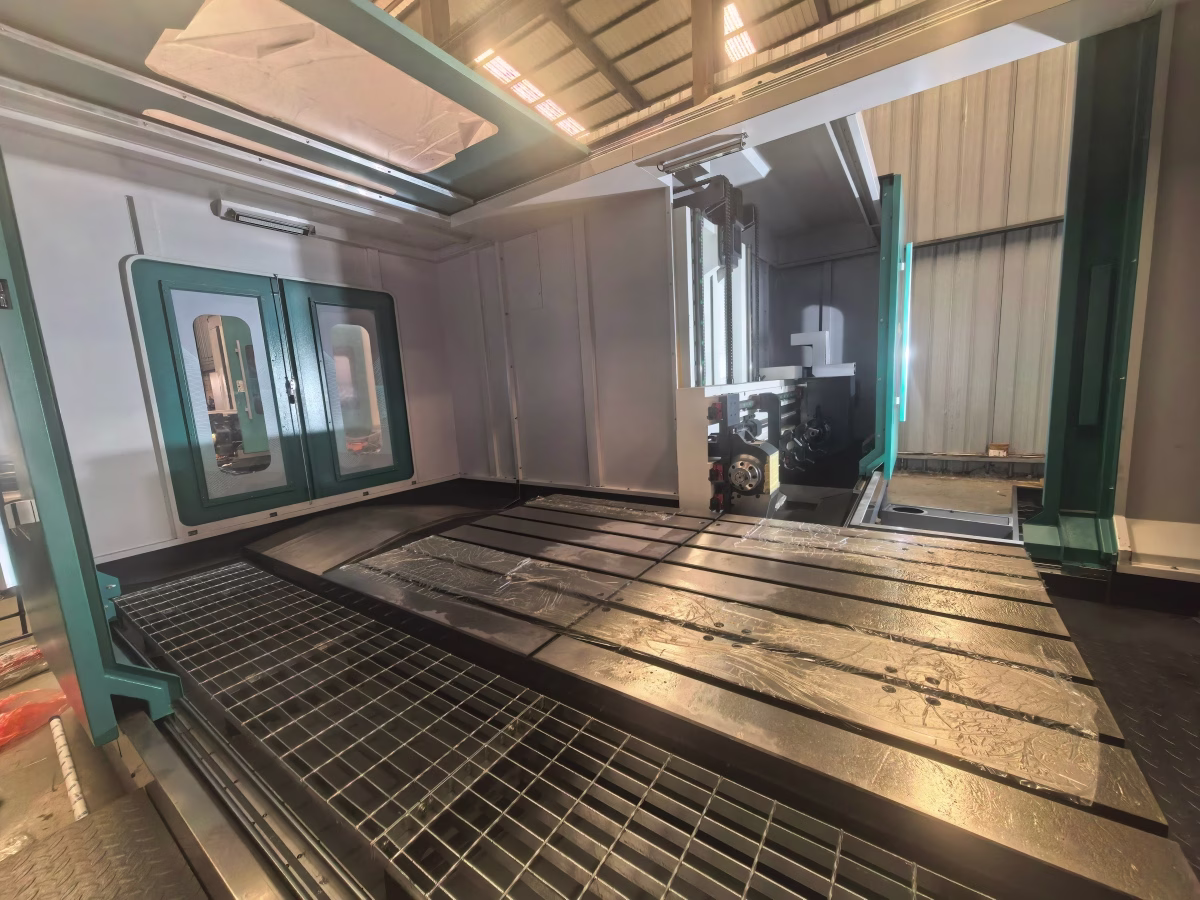

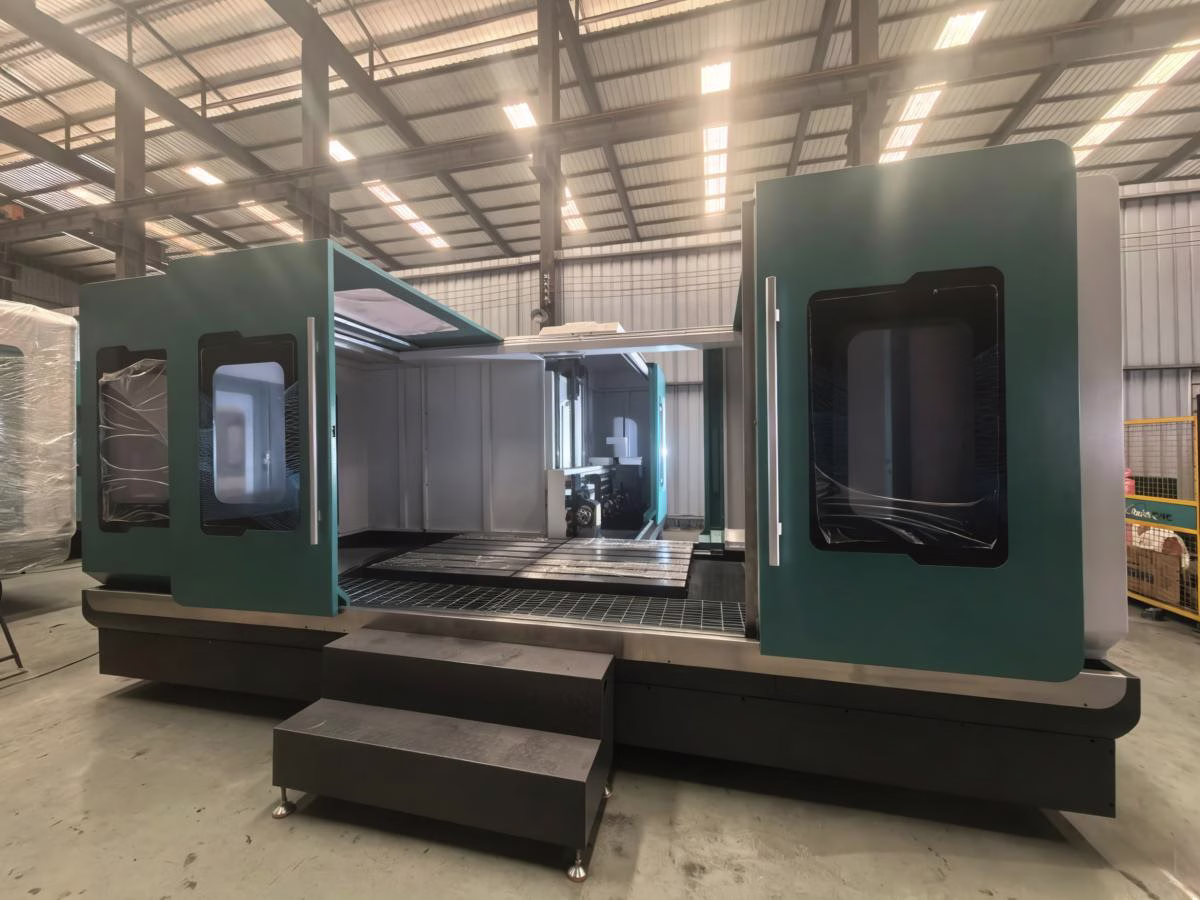

The RD2012-16H three-axis CNC deep hole drilling machine is designed for large molds and heavy-duty deep hole drilling applications. Drilling diameter range 3mm to 50mm (up to 60mm in special cases) with drilling depth up to 1600mm. Optional BTA system extends capability to 25-80mm. Equipped with Taiwan Syntec 21MA-E CNC control system as standard.
Specifications
Technical Specifications
| Drilling Diameter Range | 3 – 50 mm (gun drill, up to 60mm) |
| BTA Drilling Range (Optional) | 25 – 80 mm |
| Drilling Depth | 1600 mm |
| X-Axis Travel | 2000 mm |
| Y-Axis Travel | 1200 mm |
| Worktable Size | 2200 × 1400 mm |
| Worktable Max Load | 15 Tons |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15 / 18.5 kW |
| Spindle Motor to Spindle Ratio | 4:3 |
| Spindle Max Output Torque | 157 N.m |
| X-Axis Servo Motor | 28 N.m / 4.4 kW |
| Y-Axis Servo Motor | 28 N.m / 4.4 kW |
| Z-Axis Servo Motor | 14.6 N.m / 2.3 kW |
| Rapid Traverse Speed | 5000 mm/min |
| Feed Rate Range | 0 – 3000 mm/min |
| Servo Oil Pump Motor Power | 15 kW |
| Circulating Oil Pump Motor Power | 2 kW |
| Coolant Pressure | 3 – 10 MPa |
| Max Coolant Flow | 110 L/min |
| Control System | Taiwan Syntec 21MA-E / FANUC / MITSUBISHI / SIEMENS |
| Total Power | ≤ 40 KVA |
| Machine Weight | 19 Tons |
| Machine Dimensions | 6300 × 5600 × 2800 mm |
Features
Key Features
BTA Option Available
Optional BTA system for large-diameter deep hole drilling (25-80mm) on the same platform.
High Load Capacity
15-ton worktable capacity with 2200×1400mm surface for large molds and heavy components.
High-Rigidity Structure

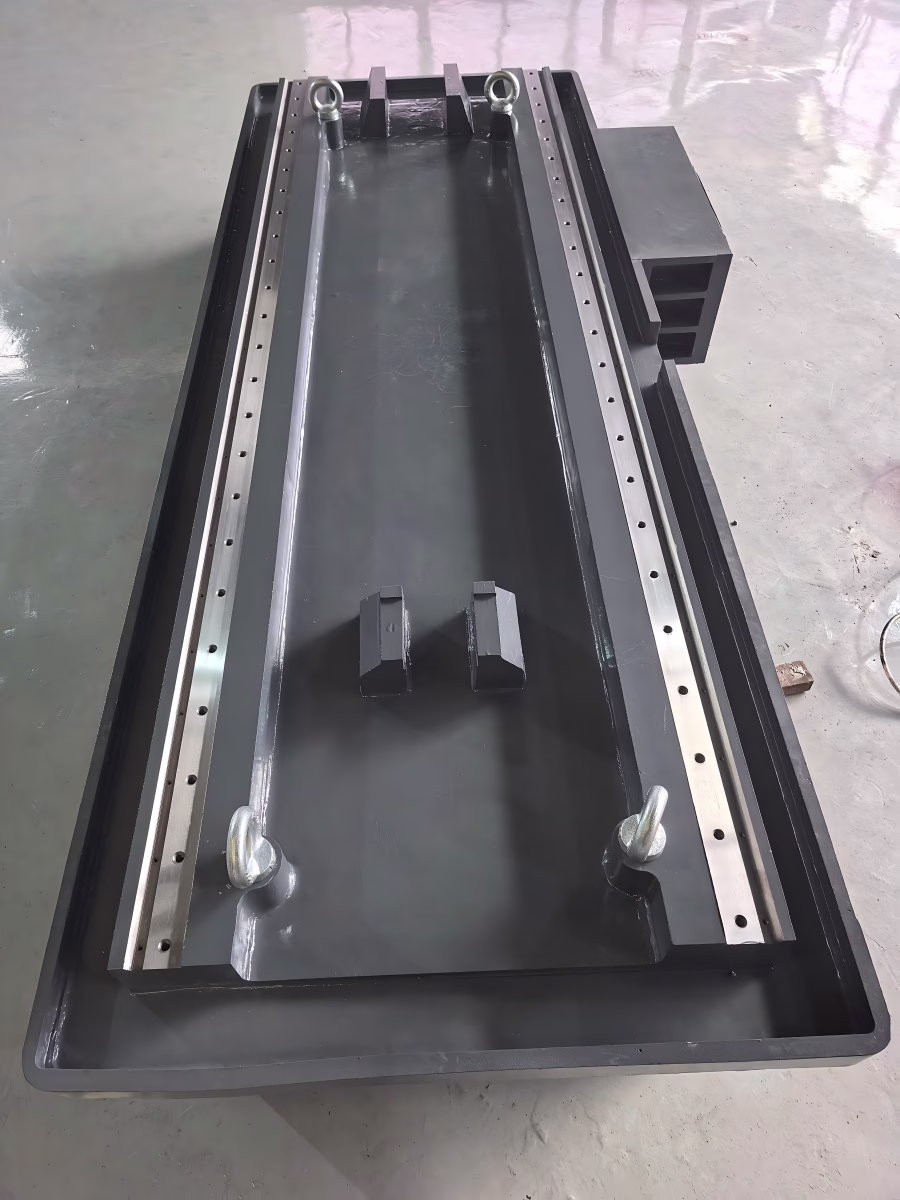

Heavy-duty cast iron machine base with finite element analysis optimized ribbing for maximum rigidity.
Precision Drive System
Precision ball screws and linear guides with servo motors delivering 5000 mm/min rapid traverse.
High-Pressure Coolant
Through-spindle coolant at up to 10 MPa ensures effective chip evacuation from deep holes.
Proven Reliability
Most popular model for mold and die cooling channel drilling worldwide.
Applications
Applications
Large mold cooling channel drilling
Die-cast die deep hole drilling
Heavy equipment component drilling
Oil and gas part manufacturing
Large shaft and cylinder drilling
