Gun Drilling Machine
RD150-C2
Medical Components CNC Deep Hole Gun Drilling Machine RD150-C2
Medical component gun drilling machine for surgical drills and implants. 2 spindles with robotic part handling. Electric spindles up to 24,000 RPM, hole size 0.9-3mm, max length 150mm.
Gallery

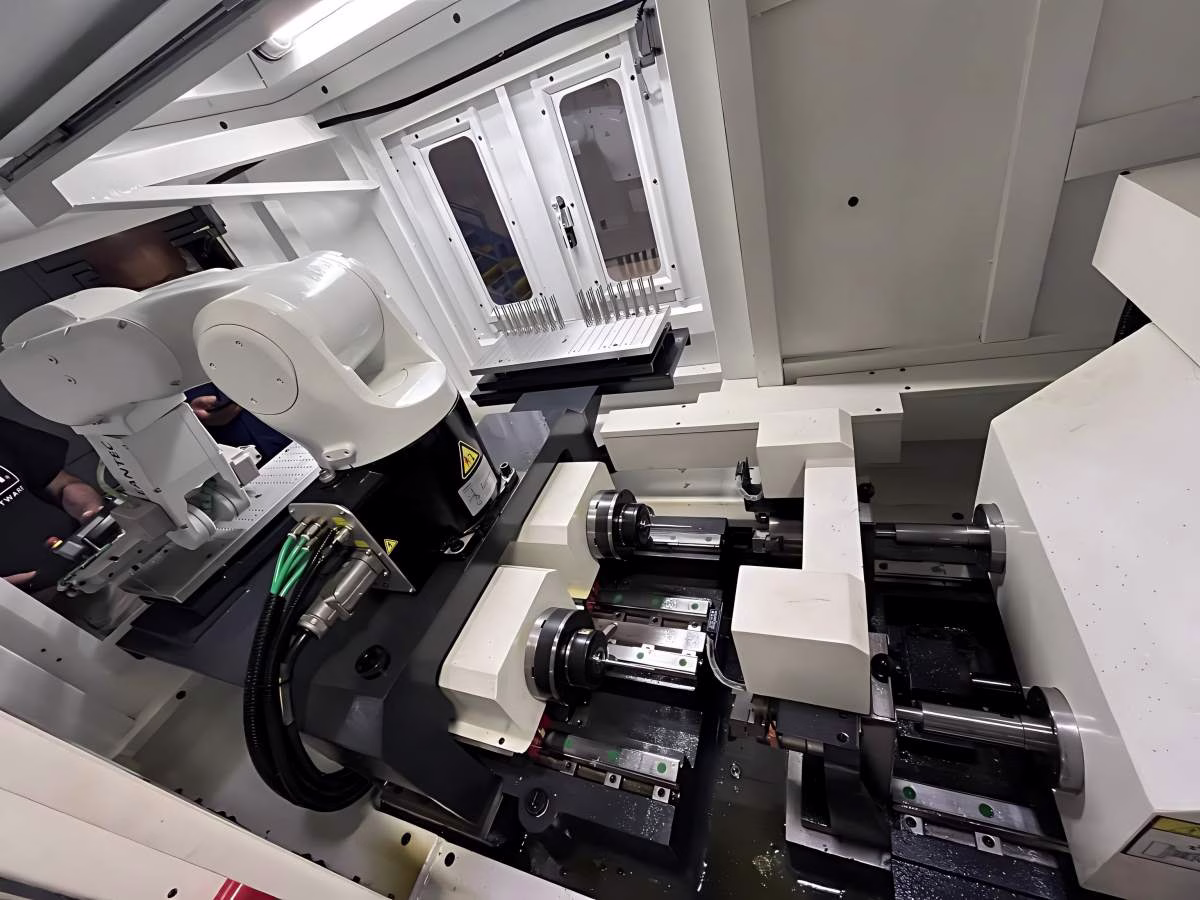

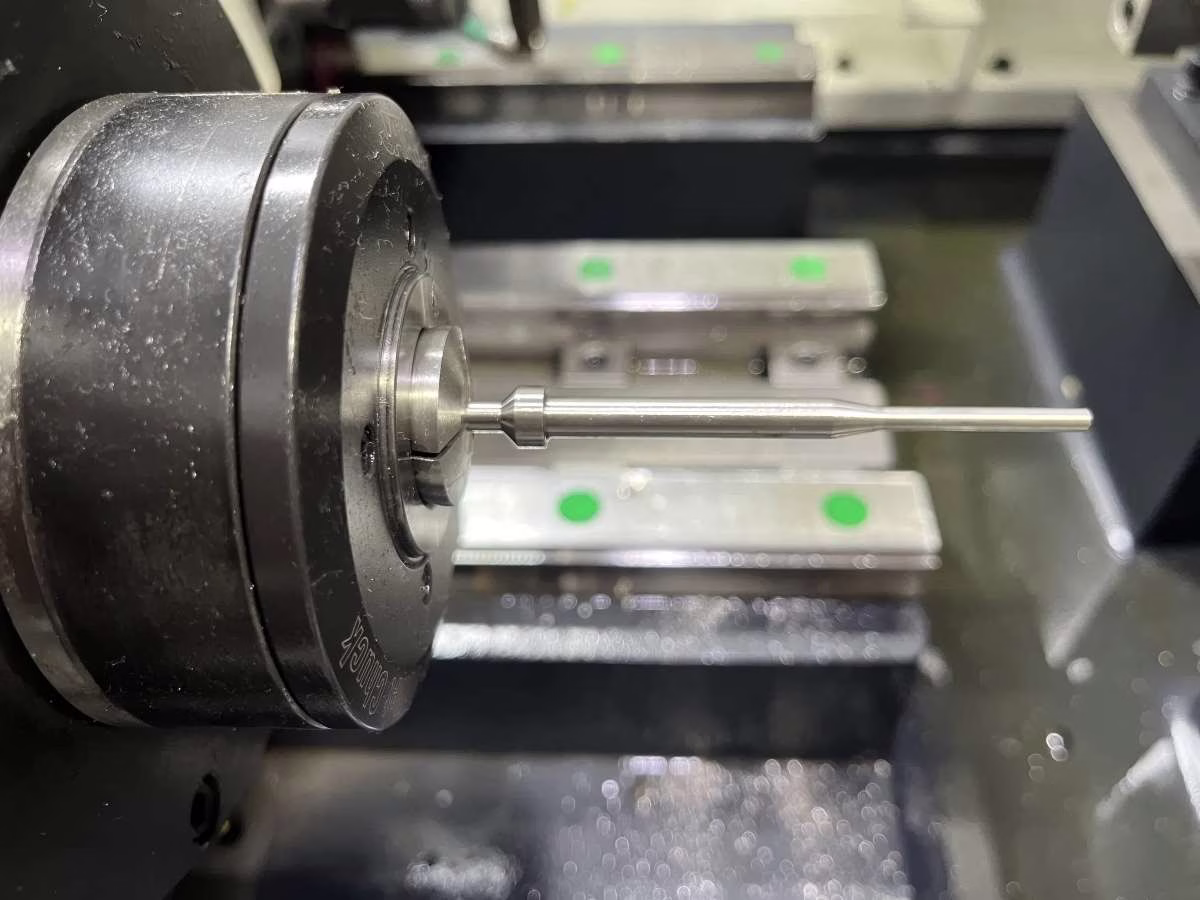

Medical components surgical drills require super accurate inner holes. Mass production demands high efficiency and robust quality. This machine is designed with 2 spindles and uses a robot to grab raw parts for drilling. Tiny size jobs with electrical spindle motors up to 24,000 RPM, hole size 0.9-3mm, max length 150mm.
Specifications
Technical Specifications
| Drilling Diameter | 0.9 – 3 mm |
| Max Drilling Length | 150 mm |
| Spindle Quantity | 2 |
| Spindle Max RPM | 24,000 rpm |
| Material Handling | 6-axis robotic arm |
Features
Key Features
Medical-Grade Precision
Ultra-high accuracy for surgical drill cannulation, bone screws, and dental implants.
Robotic Automation
6-axis robotic arm for automated part loading and unloading, ideal for mass production.
High-Speed Electric Spindles
Up to 24,000 RPM electrical spindles enable micro-drilling with exceptional surface finish.
Customizable Design
Machine can be designed based on customer demands for specific medical components and surgical instruments.
Applications
Applications

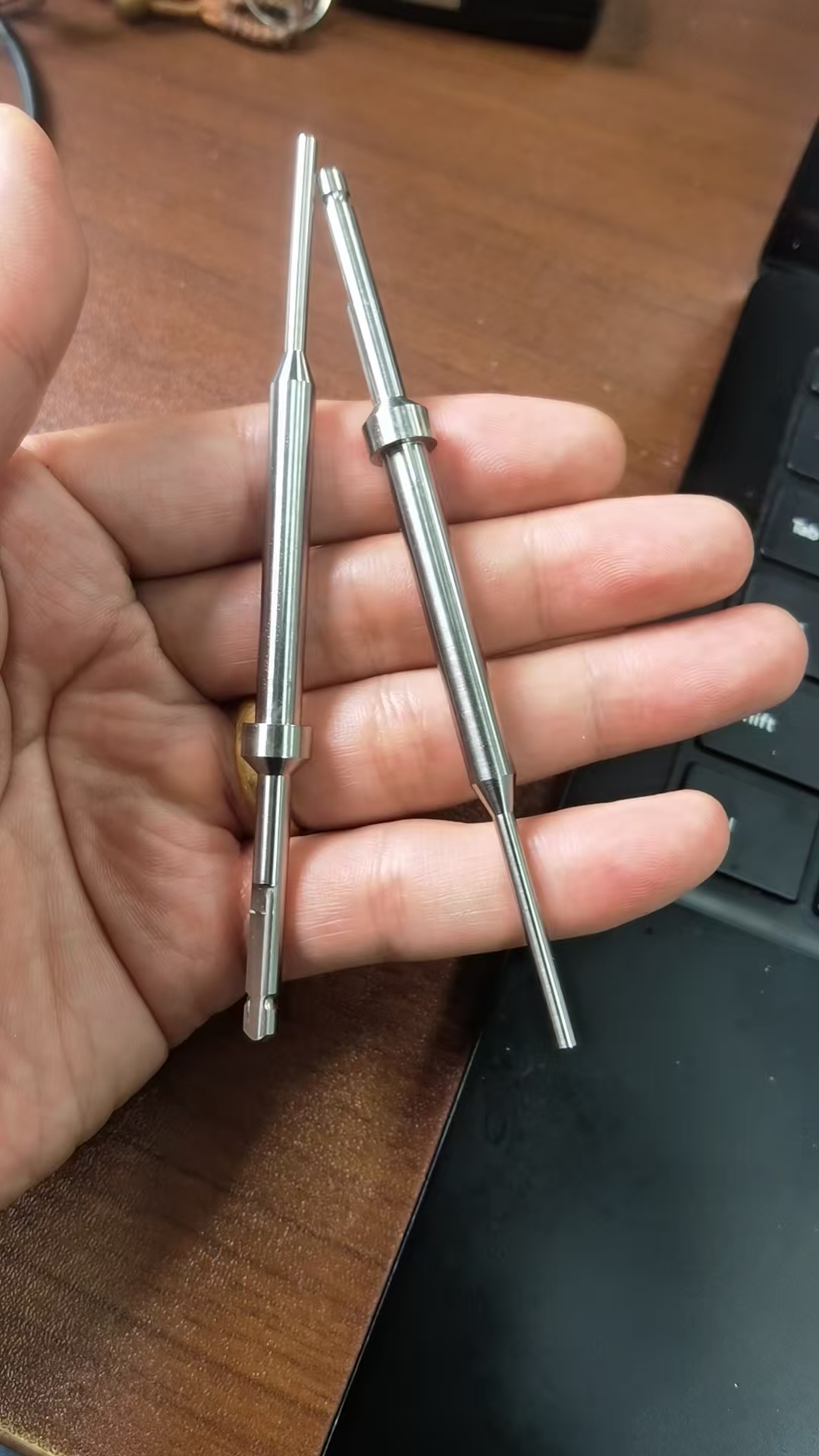

Surgical drill bit cannulation
Bone screw center hole drilling
Dental implant internal hole drilling
Medical instrument micro-lumen drilling
