RD1010-10H
Three Axis CNC Deep Hole Drilling Machine RD1010-10H
Standard three-axis CNC deep hole drilling machine for molds and general parts. Drilling diameter 3-35mm, depth 1000mm. Entry-level model with high flexibility and precision.

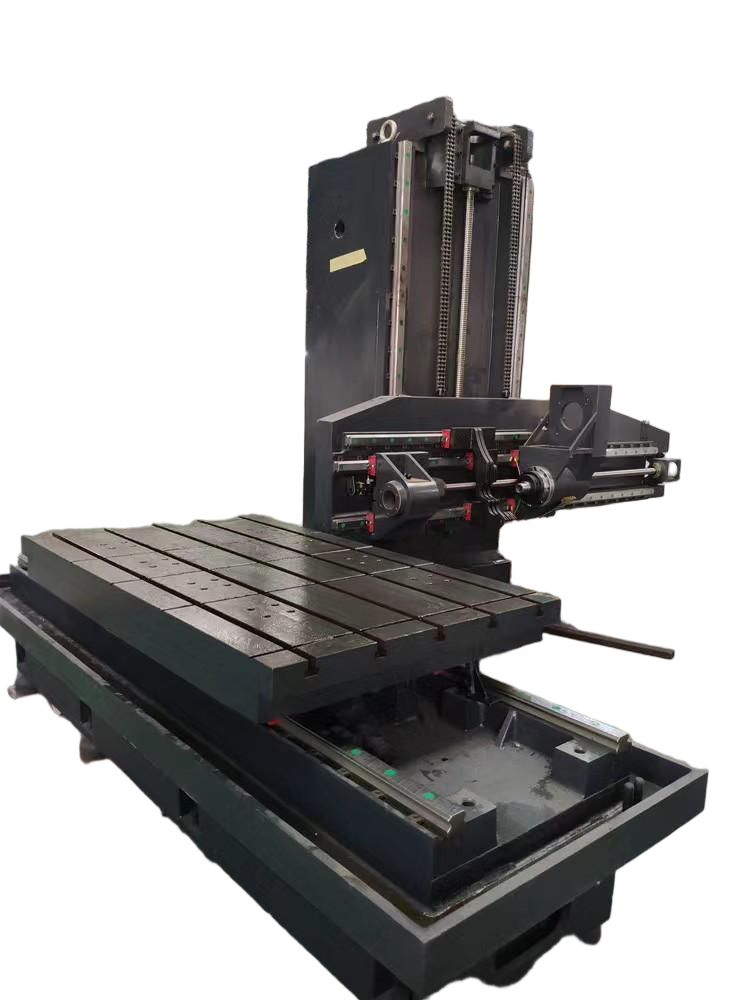

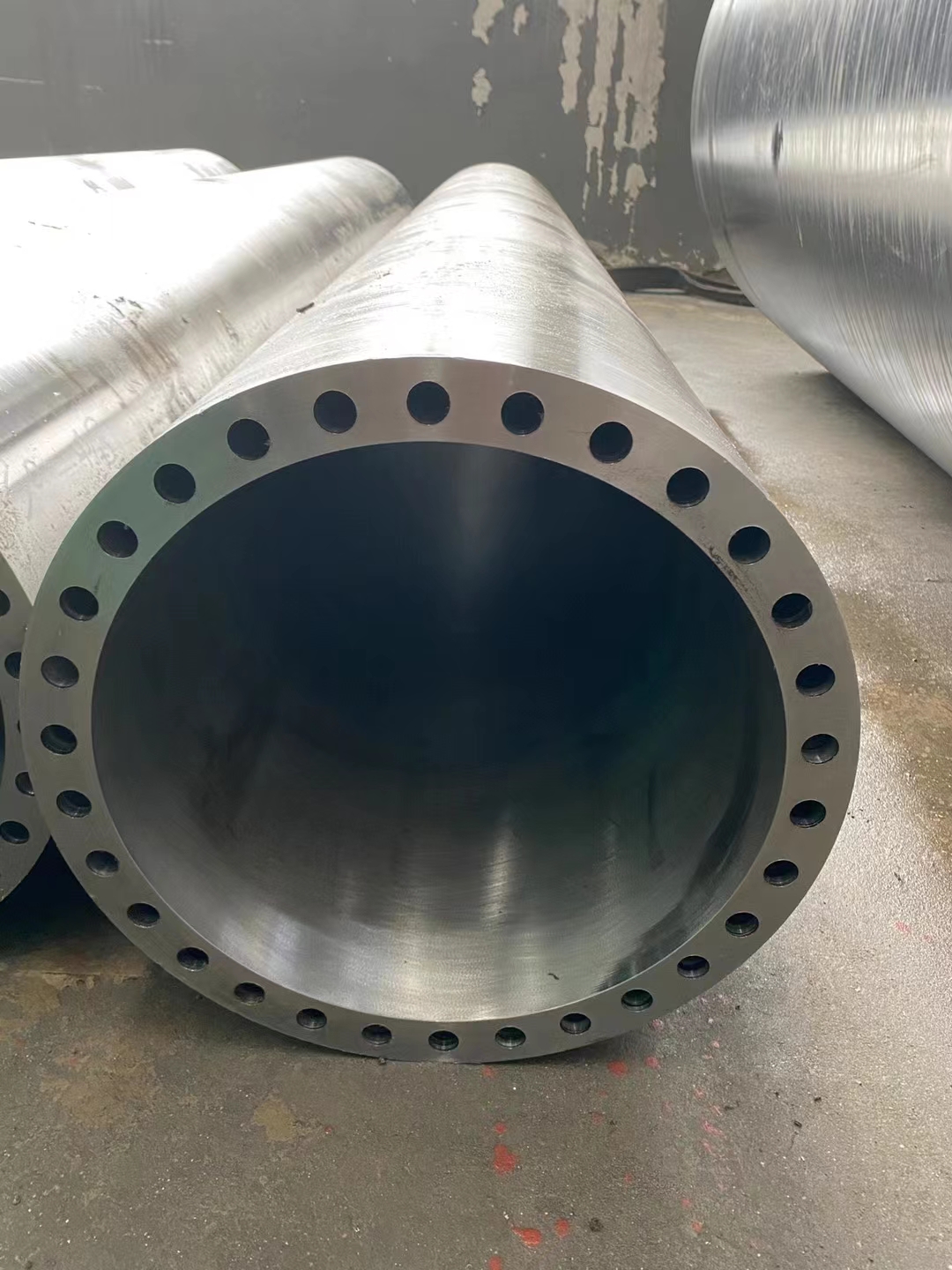

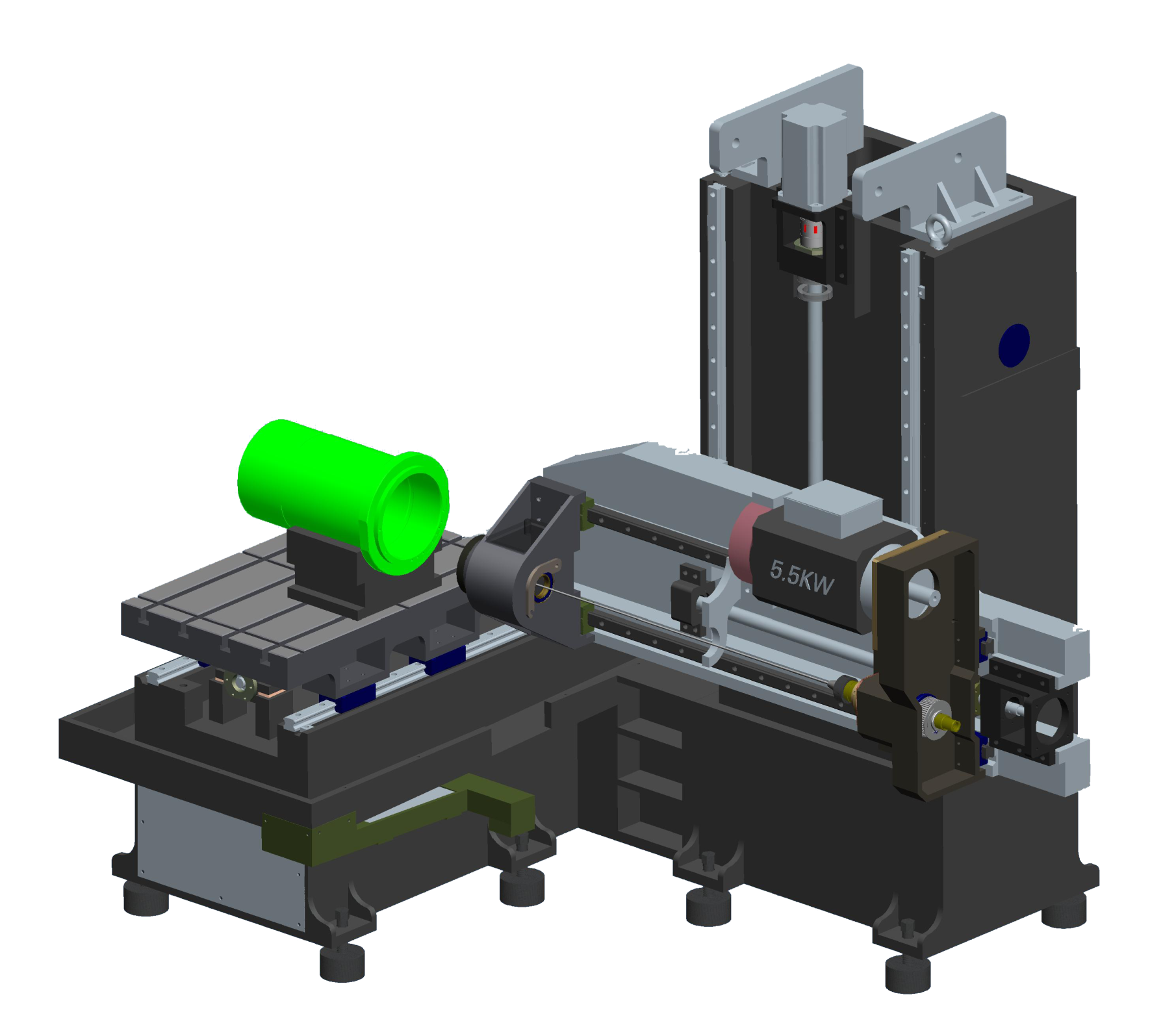

Gallery
The RD-H CNC deep hole drilling machine is a three-axis CNC gun drilling machine designed for deep hole machining of box-type parts, special-shaped components, or plastic molds. It features high flexibility, high efficiency, high precision, and high automation. A single clamping allows for deep hole machining at multiple positions. It is the usual starting point for mould shops among RuidCNC’s drilling machines for moulds.
Specifications
Technical Specifications
| Drilling Diameter Range | 3 – 35 mm |
| Drilling Depth | 1000 mm |
| X-Axis Travel | 1000 mm |
| Y-Axis Travel | 1000 mm |
| Worktable Size | 1200 × 900 mm |
| Worktable Max Load | 5 Tons |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15 / 18.5 kW |
| Spindle Motor to Spindle Ratio | 4:3 |
| Spindle Max Output Torque | 117 N.m |
| Spindle Collet | ER50 |
| Hole Finishing Precision | IT8 – IT11 |
| Surface Roughness | Ra ≤ 3.2 µm |
| T-Slots | 28mm × 6 |
| X-Axis Servo Motor | 14.6 N.m / 2.3 kW |
| Y-Axis Servo Motor | 14.6 N.m / 2.3 kW |
| Z-Axis Servo Motor | 14.6 N.m / 2.3 kW |
| Rapid Traverse Speed | 5000 mm/min |
| Feed Rate Range | 0 – 3000 mm/min |
| Servo Oil Pump Motor Power | 11 kW |
| Circulating Oil Pump Motor Power | 1 kW |
| Coolant Pressure | 3 – 10 MPa |
| Max Coolant Flow | 110 L/min |
| Control System | Taiwan Syntec 21MA-E (Std) / FANUC / MITSUBISHI / SIEMENS (Opt) |
| Total Power | ≤ 32 KVA |
| Machine Weight | 8 Tons |
| Machine Dimensions | 4300 × 3100 × 2600 mm |
Features
Key Features
Widened Column Structure
Two precision heavy-duty linear guides with internal balance counterweight system improve drilling carriage stability and reduce Y-axis screw overload risk.
Strong Machining Capability
Maximum solid drilling diameter of 35mm (up to 40mm in special cases) with ER50 collet clamping up to ∅35mm.
Adjustable Front Guide
Allows precise correction of guidance and spindle concentricity, also facilitates maintenance.
Servo High-Pressure Oil Supply
Input the tool diameter and oil pressure adjusts automatically, simplifying operation and reducing errors. High-pressure internal gear pump with low noise and long lifespan.
Seven-Stage Filtration System
Cutting oil filtration precision of 30μm protects the high-pressure oil pump for long-term efficient operation.
Compressor-Type Oil Cooler
Maintains temperature within a set range, ensuring stable machining of parts over extended periods.
CNC Control
Taiwan Syntec 21MA-E CNC system with optional Fanuc 0iMF-Plus or Siemens 828D systems.
High Precision Drilling
IT8–IT11 hole finishing precision with Ra ≤ 3.2 µm surface roughness for demanding applications.
Applications
Applications
Standard mold cooling channel drilling
General precision component drilling
Small to medium mold and die manufacturing
Box-type parts and special-shaped components
