RD1010-10M Gundrilling Milling and Tapping Compound Machine
Compound machine integrating gun drilling, milling, and tapping with 24-position ATC and BT50 tool holder. Drilling range 3-35mm, depth 1000mm. Ideal for hot runner and die mold applications.
Gallery

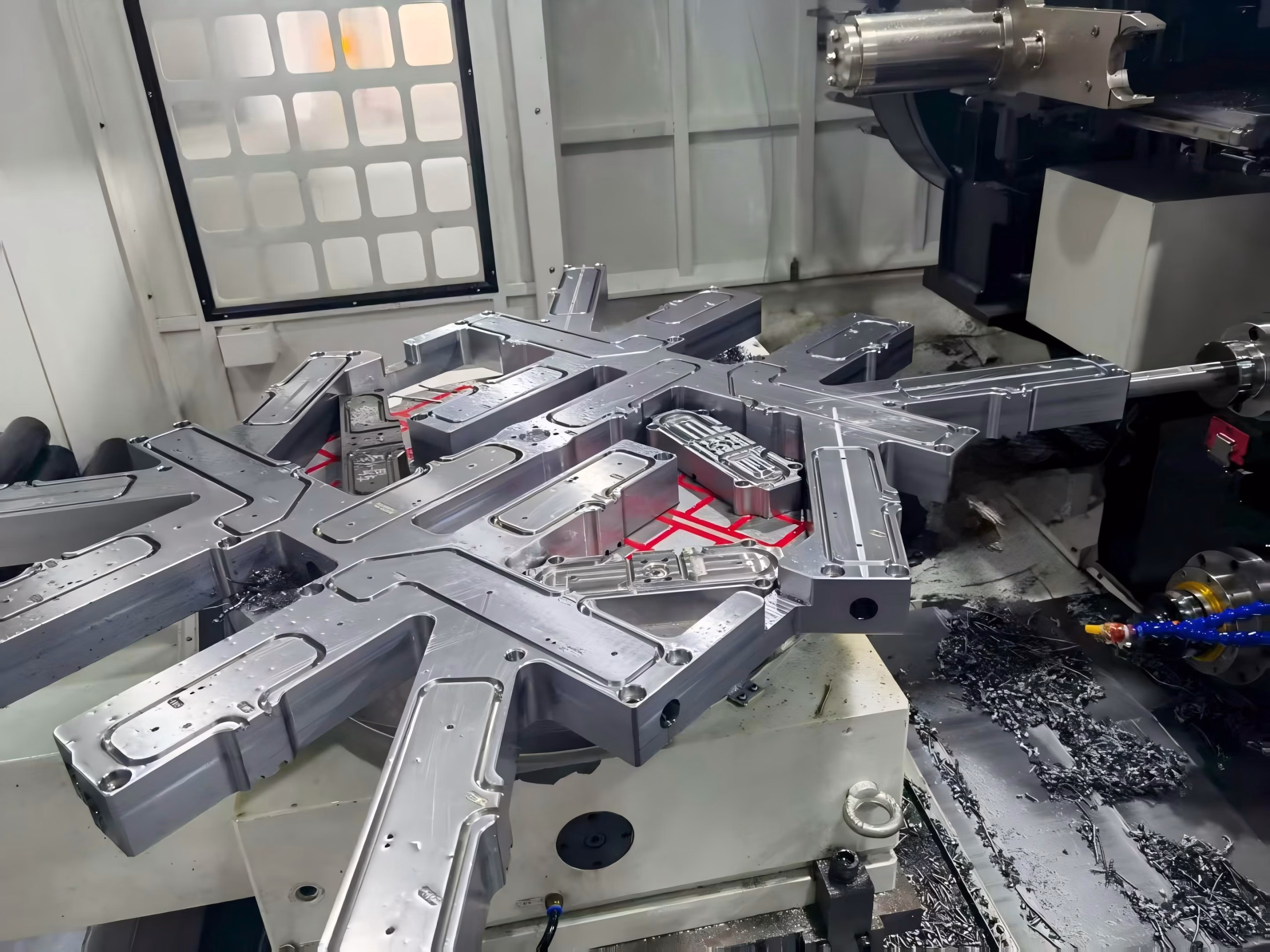

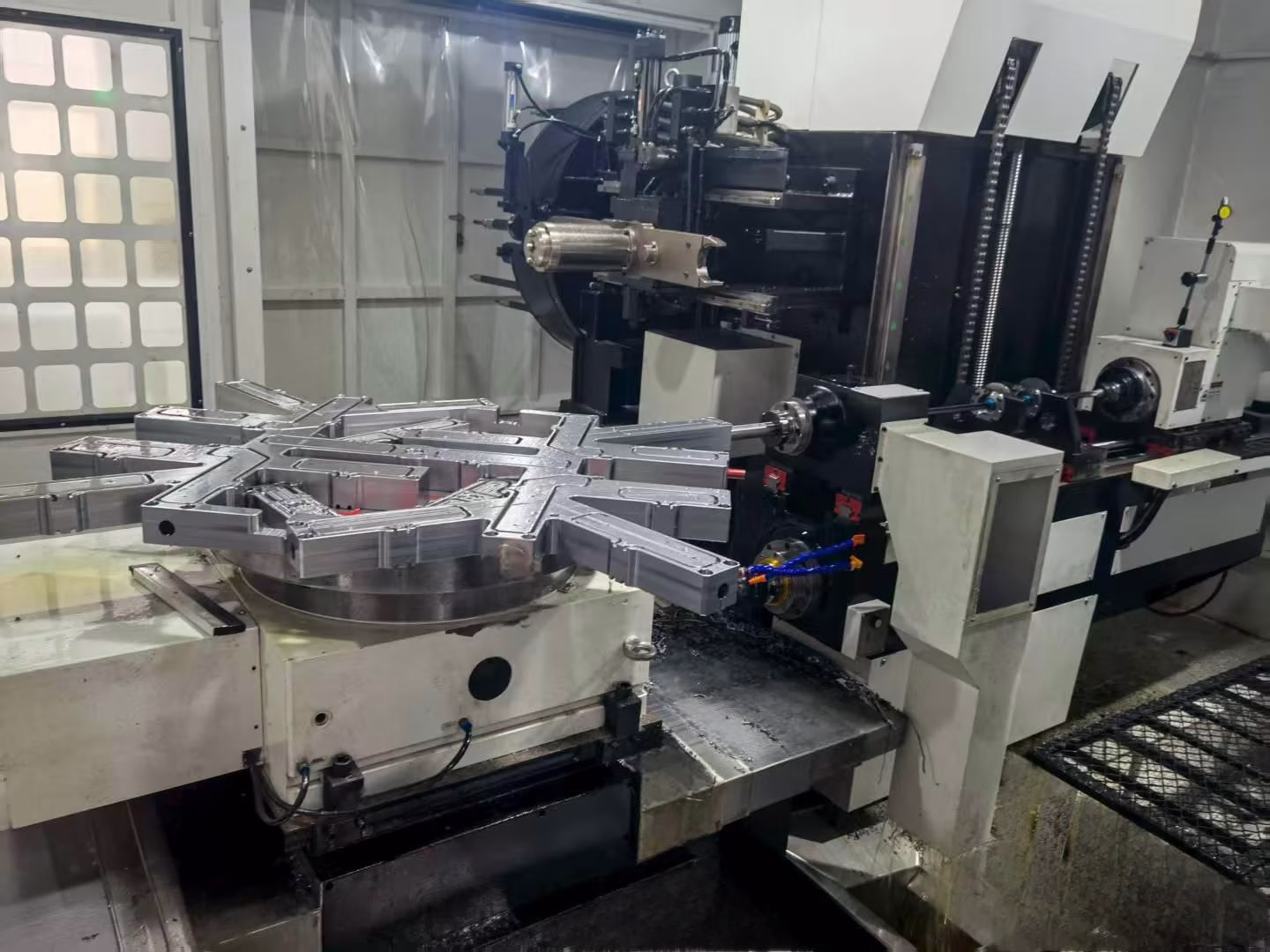

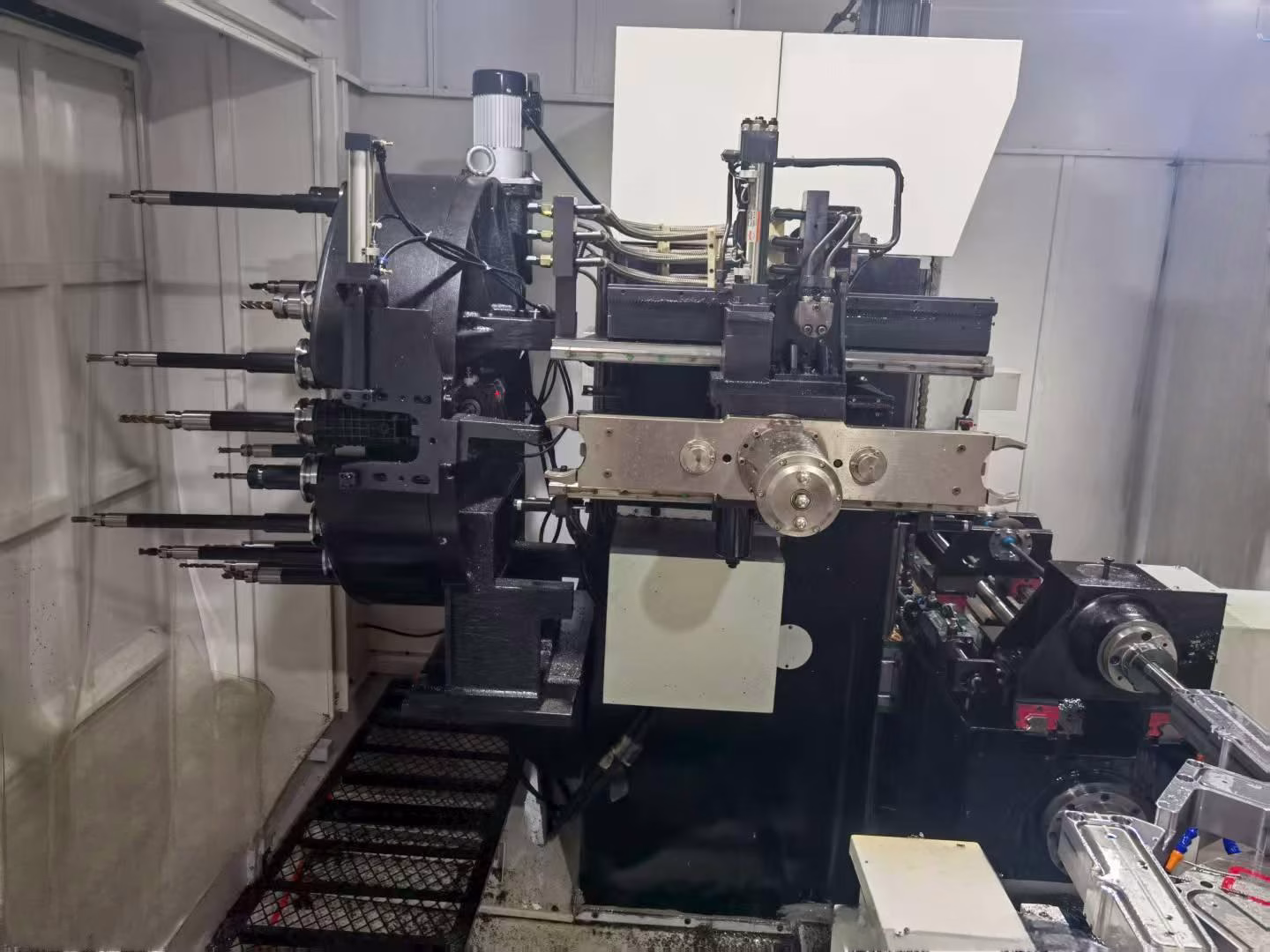

Gundrilling, milling, and tapping compound machine applying on hot runner and die mold applications. Equipped with 24-position auto tool changer and BT50 tool holder. Features Siemens 828D CNC controller and 600mm round magnetic worktable.
Specifications
Technical Specifications
| Drilling Range | 3 – 35 mm |
| Max Drilling Depth | 1000 mm |
| Tapping Capacity | M24 |
| X-Axis Travel (Worktable) | 1000 mm |
| Y-Axis Travel (Spindle Up/Down) | 600 mm |
| Z-Axis Travel (Worktable Front/Back) | 800 mm |
| B-Axis Rotary Table | 360°, 0.001° indexing |
| Gun Drilling Max RPM | 6000 rpm |
| Milling Max RPM | 4000 rpm |
| Feeding Speed | 0 – 3000 mm/min |
| Gun Drilling Spindle Power | 7.5 kW |
| Milling Spindle Power | 15 kW |
| X/Y/Z-Axis Servo Motor Power | 3.9 kW |
| W-Axis Servo Motor Power | 2.4 kW |
| Magnetic Worktable Size | Ф600 mm |
| ATC Tools | 24 pcs, BT50 tool holder |
| CNC Controller | Siemens 828D |
| Total Power | 45 kW |
Features
Key Features
Multi-Process Compound Machine
Integrates gun drilling, milling, and tapping in a single platform for die and mold applications.
24-Position ATC
Auto tool changer with 24 tools and BT50 holder for seamless switching between drilling, milling, and tapping.
Rotary Table
B-axis rotary table with 360° positioning and 0.001° indexing for multi-face machining.
Dual Spindle System
Independent gun drilling spindle (7.5 kW) and milling spindle (15 kW) for optimized performance.
Applications
Applications
Hot runner mold drilling and milling
Die and mold multi-process machining
Compound drilling, milling and tapping
Custom deep hole drilling applications
