Deep Hole Drilling Machine
RD2515-16H
Horizontal Deep Hole Drilling Machine
Horizontal deep hole drilling machine for large workpieces up to 18 tons. Drilling diameter 3-50mm, depth 1600mm. Larger worktable and higher load capacity for heavy industrial applications.

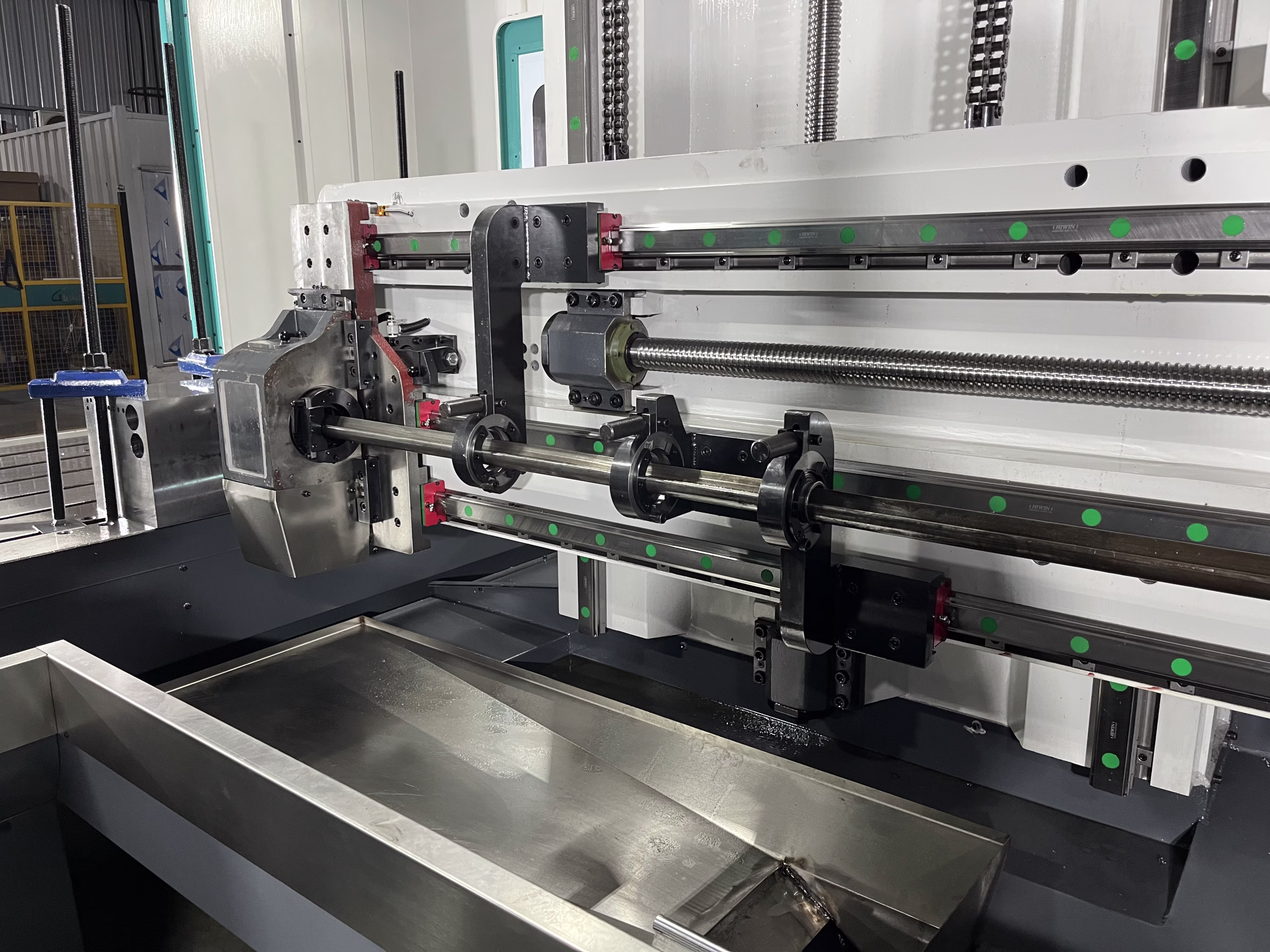

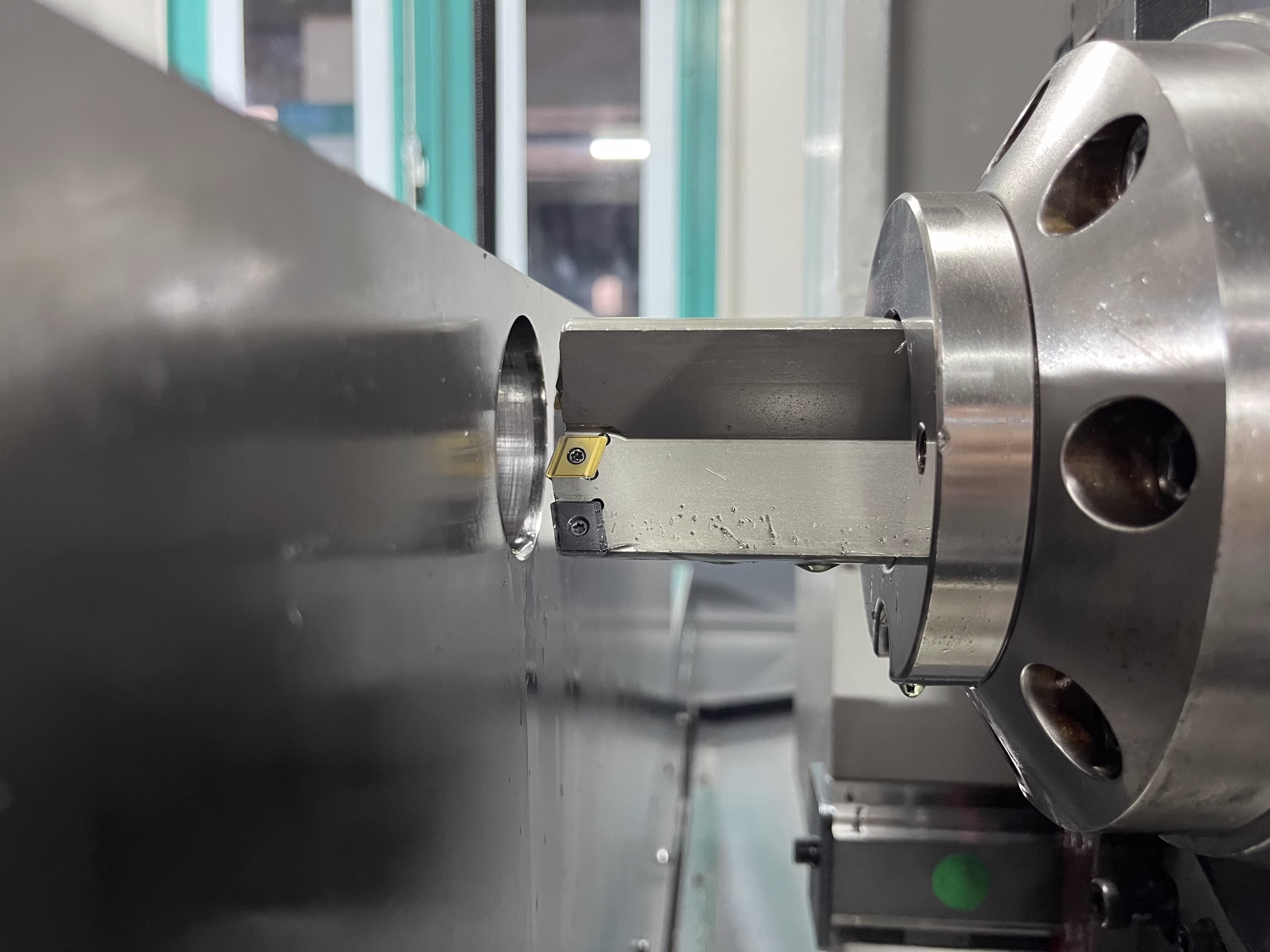

Gallery
The Horizontal Deep Hole Drilling Machine is engineered for high-precision drilling in deep hole applications. Designed for efficiency, it provides exceptional performance in a variety of industries, including aerospace, automotive, and energy. With advanced features such as multi-axis control, high-precision spindle, and automatic feed adjustment, it ensures consistent, accurate results for deep hole drilling operations.
Specifications
Technical Specifications
| Drilling Diameter Range | 3 – 50 mm |
| Maximum Drilling Depth | 1600 mm |
| X-Axis Travel | 2500 mm |
| Y-Axis Travel | 1500 mm |
| Worktable Surface | 2700 × 1500 mm |
| Max Load Capacity | 18 Tons |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15 kW / 18.5 kW |
| Spindle Motor to Spindle Ratio | 4:3 |
| Spindle Max Output Torque | 157 N.m |
| X-Axis Servo Motor | 28 N.m / 4.4 kW |
| Y-Axis Servo Motor | 28 N.m / 4.4 kW |
| Z-Axis Servo Motor | 14.6 N.m / 2.3 kW |
| Rapid Traverse Speed | 5000 mm/min |
| Feed Rate Range | 0 – 3000 mm/min |
| Servo Oil Pump Motor Power | 15 kW |
| Circulating Oil Pump Motor Power | 2 kW |
| Coolant Pressure | 3 – 10 MPa |
| Max Coolant Flow | 110 L/min |
| Control System | Taiwan Syntec 21MA-E (Std) / FANUC / MITSUBISHI / SIEMENS (Opt) |
| Total Power | ≤ 40 KVA |
| Machine Weight | 20 Tons |
| Machine Dimensions | 6600 × 5800 × 3200 mm |
Features
Key Features
Drilling Range
Φ3mm to Φ50mm versatile hole sizes for a wide variety of deep hole drilling applications.
Maximum Depth
Up to 1600mm drilling depth, ideal for deep hole drilling in complex parts.
High Precision
Equipped with precision ball screws and linear guides for smooth, accurate movements.
Powerful Spindle
High-speed spindle motor offering stability and reliability in demanding applications.
Advanced Control System
FANUC CNC control for easy programming and precise automation of drilling processes.
Wide Application
Ideal for aerospace, automotive, and energy industries — perfect for hydraulic tubes, fuel lines, and more.
Applications
Applications
Aerospace component drilling — hydraulic tubes, fuel lines, and structural parts
Automotive industry — deep hole drilling in engine and transmission components
Energy sector — large component deep hole drilling
Large mold and die cooling holes
Heavy equipment component drilling
Ready to Optimize Your Deep Hole Drilling?
Share your application requirements with our engineering team and receive a tailored machine recommendation and quote within 24 hours.
