Gun Drilling Machine
Custom
Gun Drilling on Glass Bottle Mold
Specialized gun drilling machine for glass bottle mold cooling holes. 2 spindles with 2 ATCs for gun drills, milling and tapping tools. Drilling diameter 2-12mm, length ~350mm.
Gallery

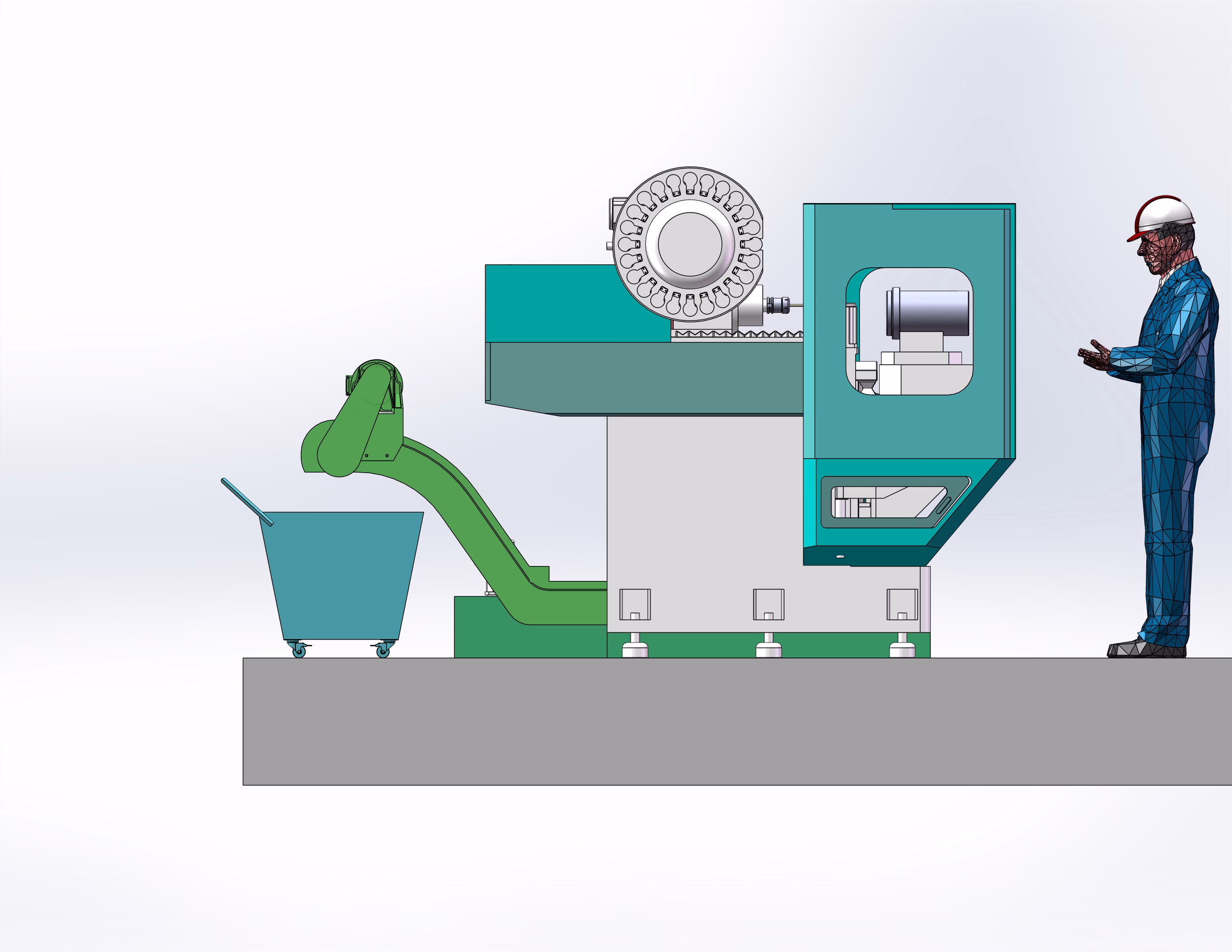

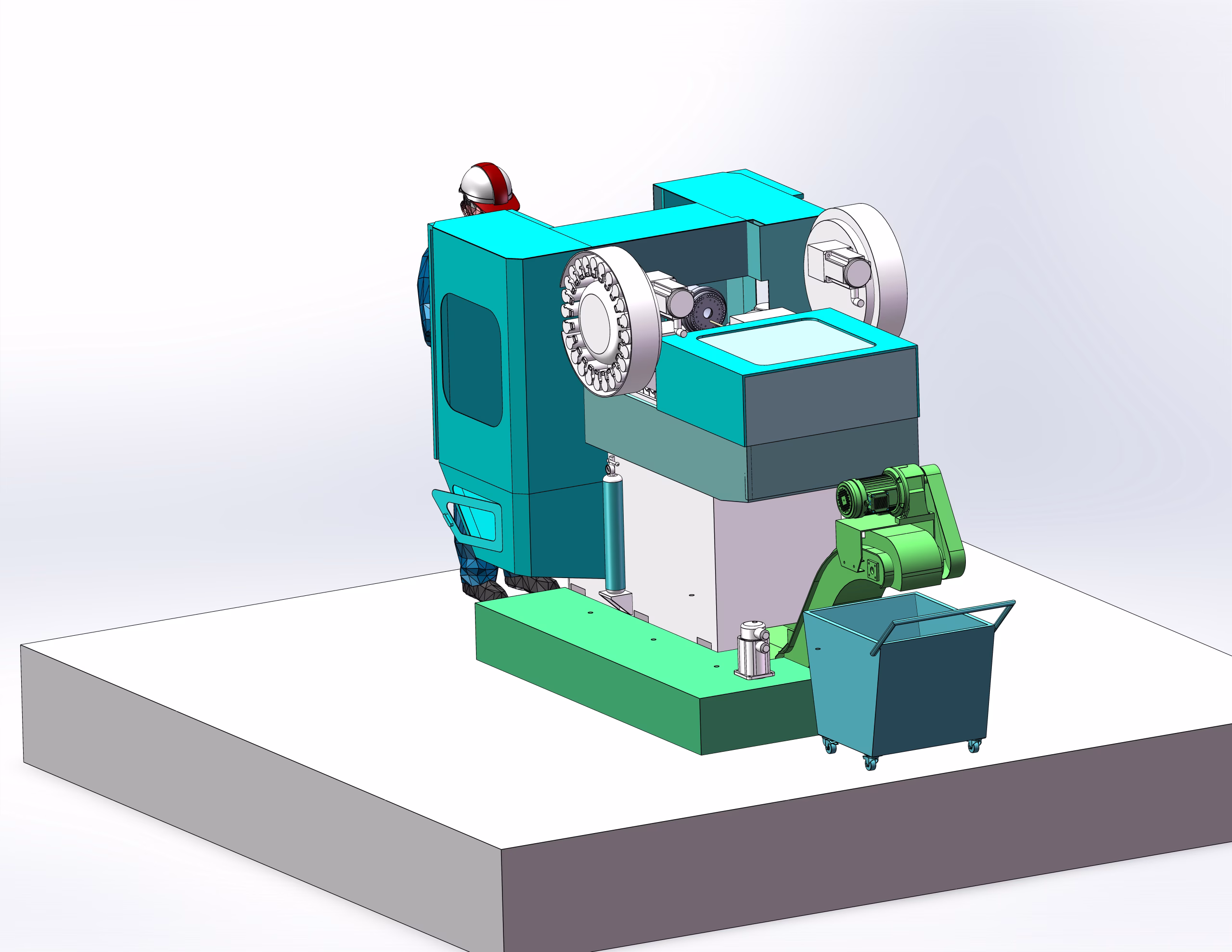

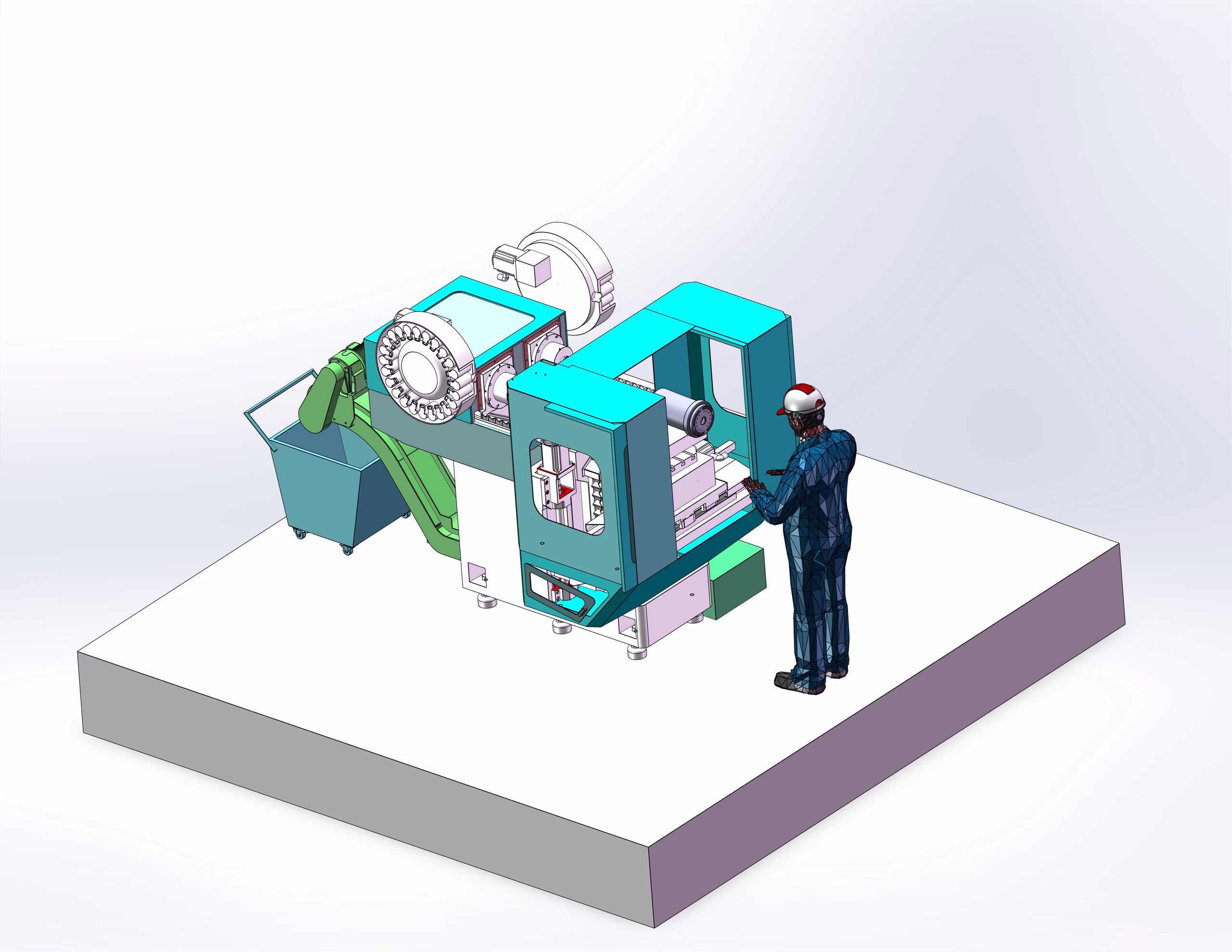

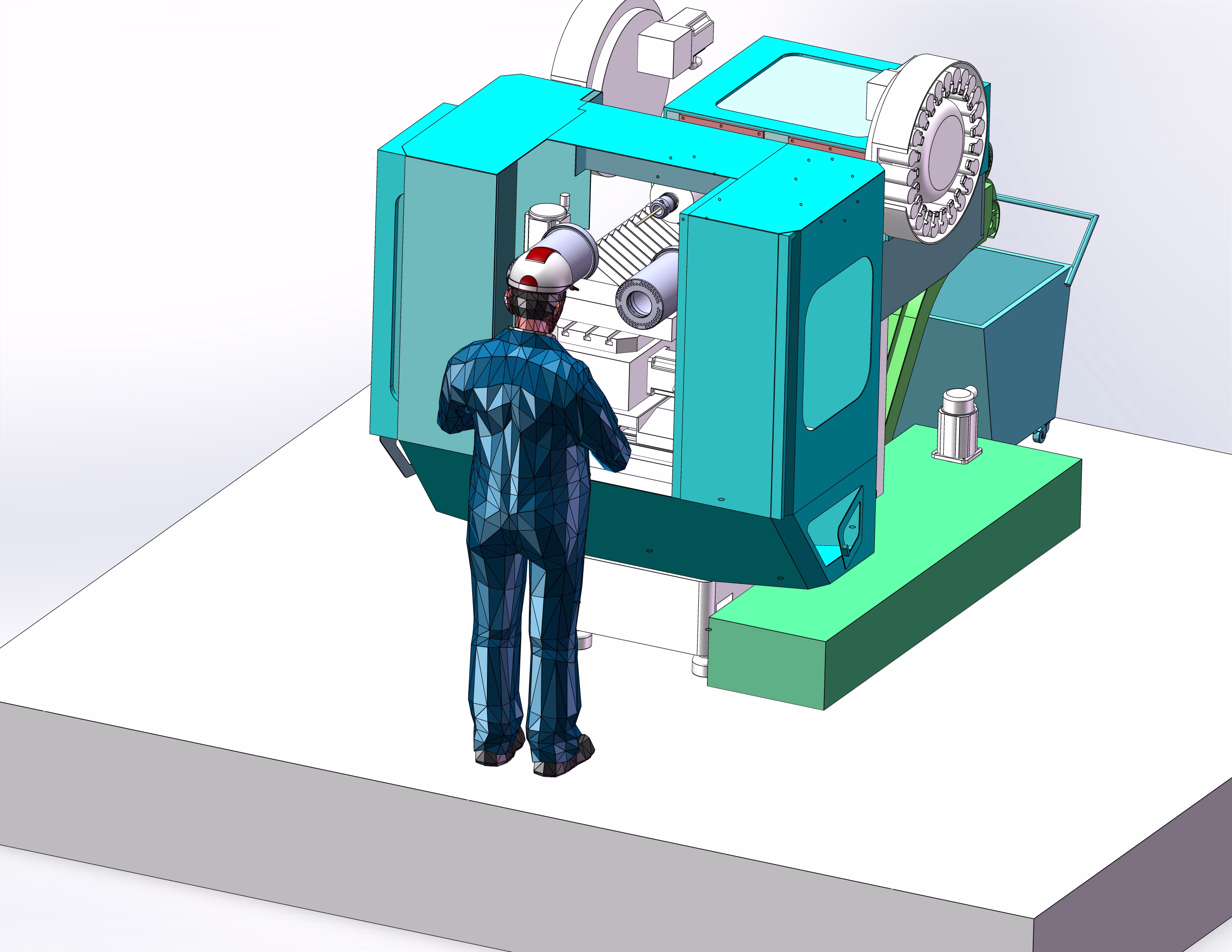

Glass Bottle mold coolant holes Gun Drilling machine — designed for small diameter deep holes from 2-12mm with lengths around 350mm. The machine bed uses stainless steel cover for easy chip evacuation. With Auto Tool Changers, the machine supports twist drilling for pilot holes, gun drilling, milling, and tapping in a single setup.
Specifications
Technical Specifications
| Gun Drilling Spindles | 2 |
| Auto Tool Changers | 2 (for gun drills, mills, taps) |
| Drilling Diameter | 2 – 12 mm |
| Drilling Length | ~350 mm |
Features
Key Features
Dual-Spindle Design
Two independent gun drilling spindles for simultaneous or sequential machining operations.
Dual ATC System
Two automatic tool changers support gun drills, milling tools, and tapping tools for multi-process machining.
Mold-Specific Design
Engineered specifically for glass bottle mold cooling hole applications with stainless steel bed for easy chip evacuation.
High Efficiency
Twist drilling for pilot holes, then switch to gun drilling, worktable rotates to finish the opposite side.
Applications
Applications
Glass bottle mold cooling hole drilling
Multi-process mold component machining
Small mold and die deep hole drilling
