Gun Drilling Machine
RD1010-10H
CNC Gun Drilling Machine RD1010-10H
Compact CNC gun drilling machine for precision deep hole drilling. Drilling diameter 3-35mm, depth 1000mm. Hole finishing precision IT8-IT11 with Ra ≤ 3.2µm surface roughness.

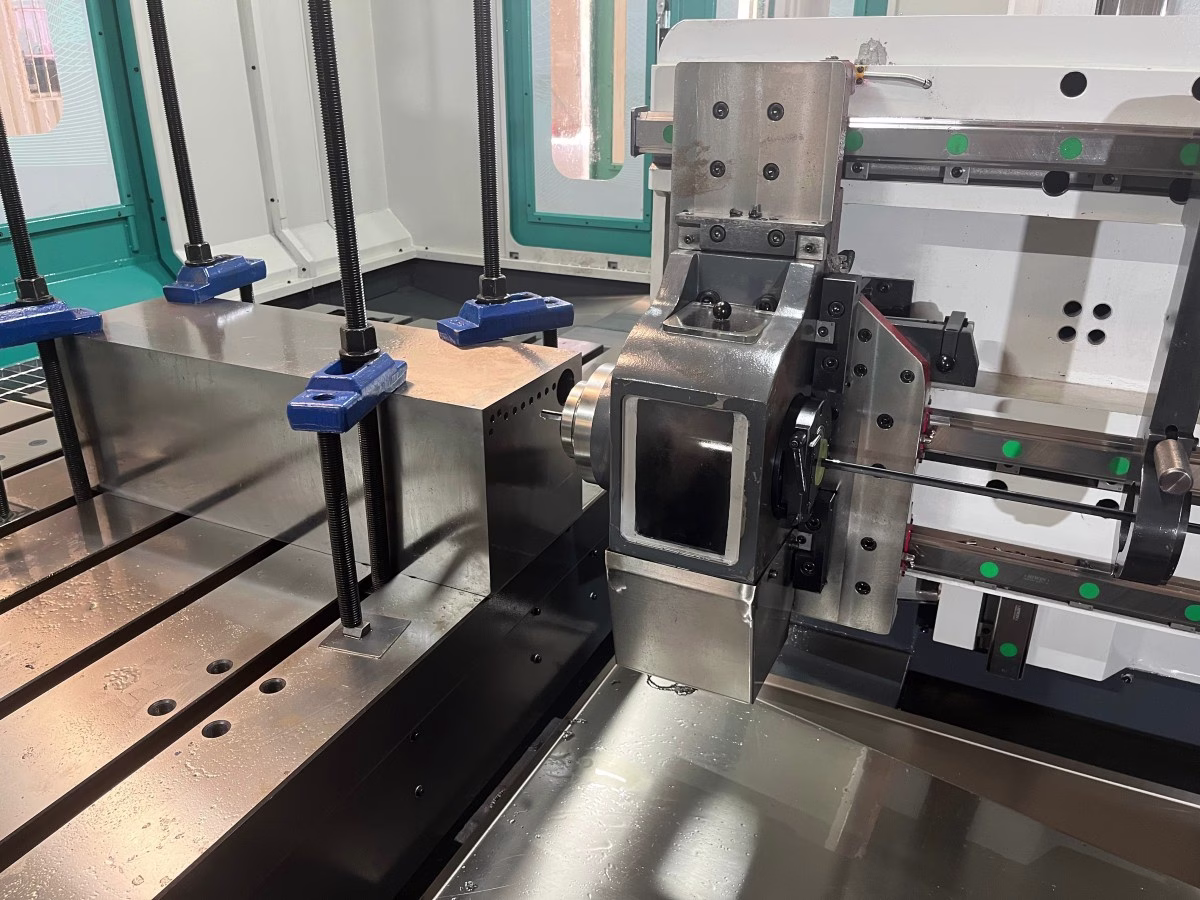

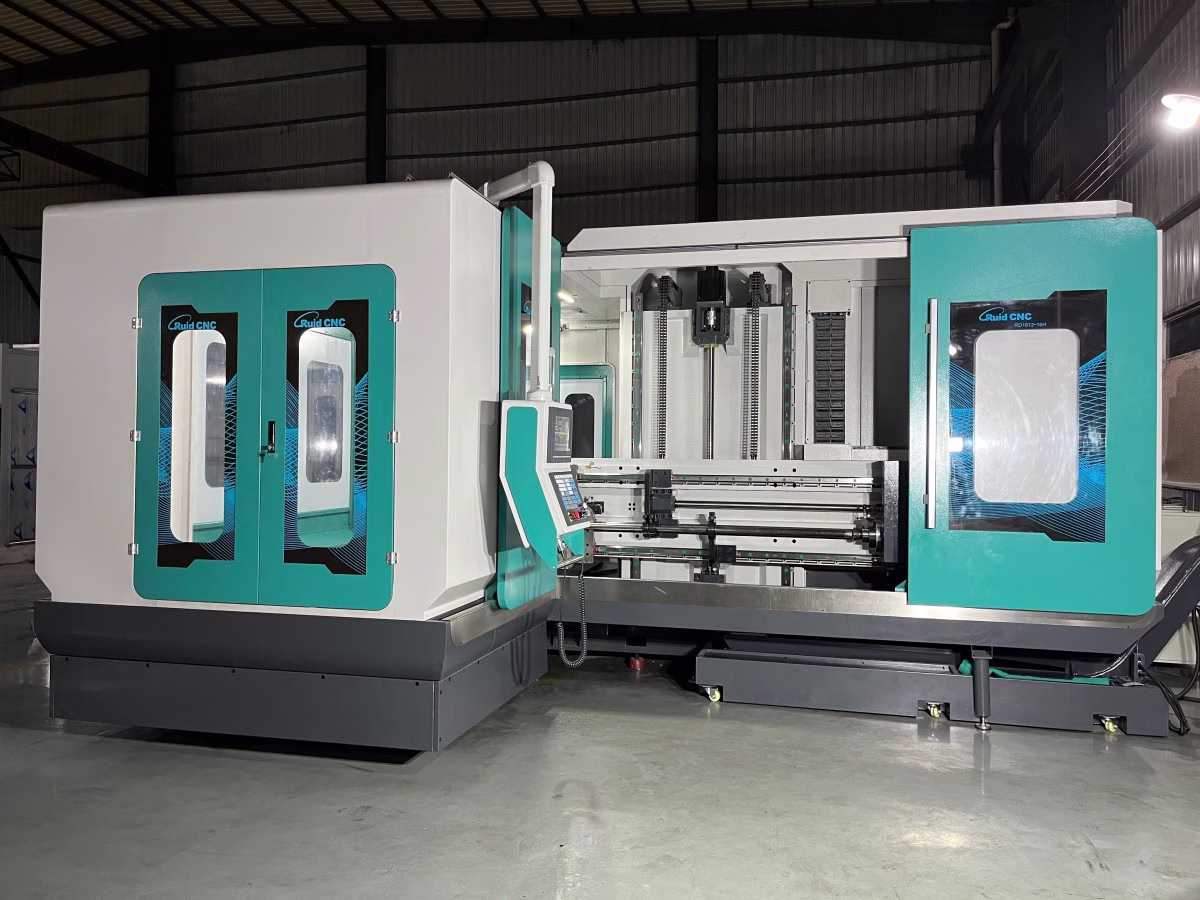

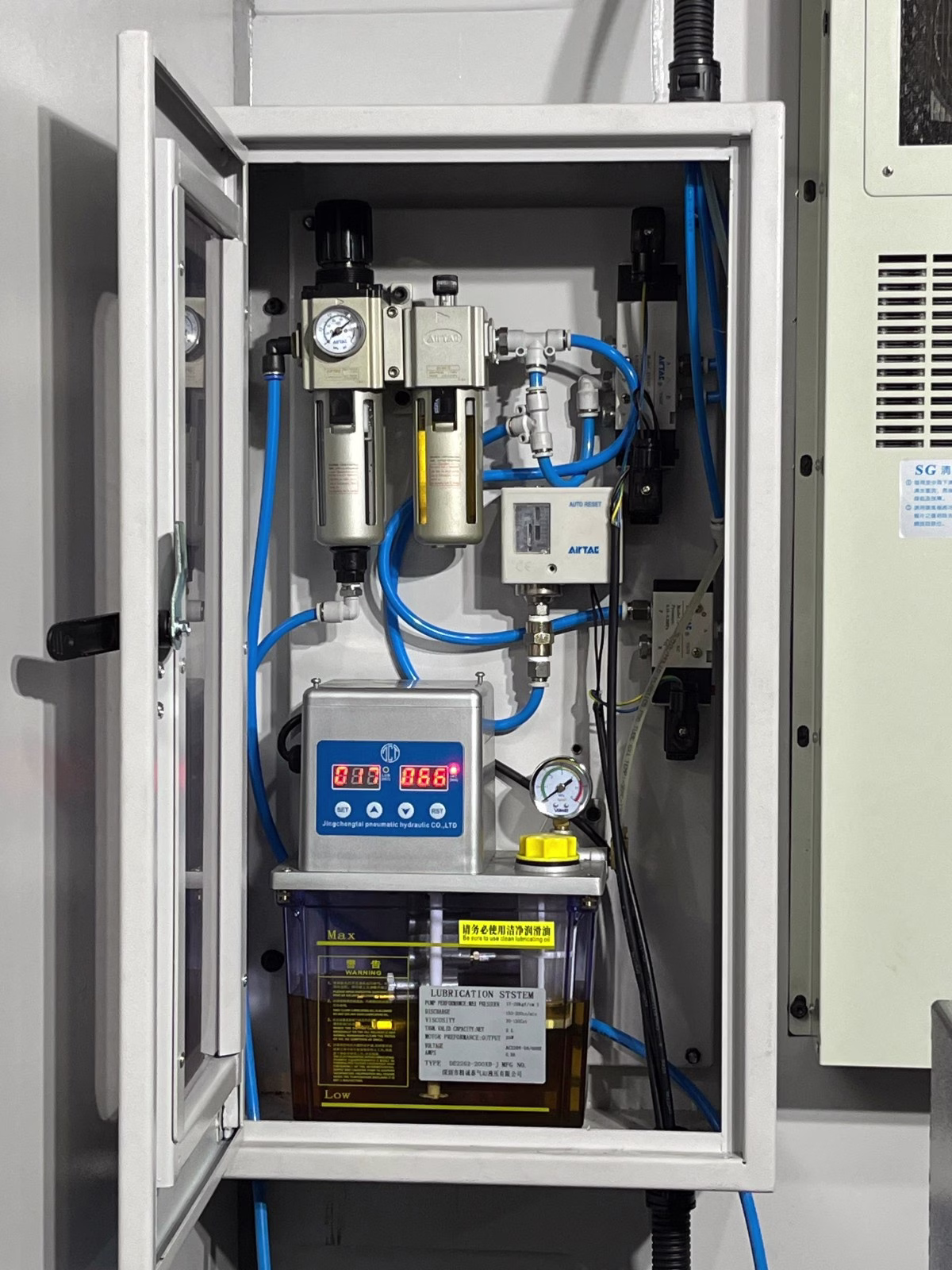

Gallery
The CNC Gun Drilling Machine is designed for exceptional precision in deep hole drilling, making it the ideal solution for industries such as aerospace, automotive, and precision engineering. With advanced CNC control, it delivers outstanding performance, enabling you to drill precise holes with diameters ranging from Φ3mm to Φ35mm and depths up to 1000 mm.
Specifications
Technical Specifications
| Drilling Range | 3 – 35 mm |
| Max Drilling Depth | 1000 mm |
| X-Axis Travel | 1000 mm |
| Y-Axis Travel | 1000 mm |
| Z-Axis Travel | 1050 mm |
| Worktable Size | 1200 × 900 mm |
| Max Loading | 5 Tons |
| T-Slots | 28mm × 6 |
| Spindle Max RPM | 6000 rpm |
| Spindle Motor Power | 15 / 18.5 kW |
| Hole Finishing Precision | IT8 – IT11 |
| Surface Roughness | Ra ≤ 3.2 µm |
Features
Key Features
High Precision Drilling
IT8-IT11 hole finishing precision with Ra ≤ 3.2µm surface roughness for demanding applications.
Compact Design
Space-saving footprint ideal for shops with limited floor space without compromising drilling capacity.
Versatile CNC Control
Advanced CNC control with programmable drilling cycles for flexible operation across materials.
Efficient Chip Evacuation
Through-spindle high-pressure coolant system ensures effective chip removal from deep holes.
Applications
Applications
General precision deep hole drilling
Mold and die cooling holes
Automotive component drilling
Hydraulic component manufacturing
