BTA Deep Hole Drilling Machine
BTA deep hole drilling machine for large-diameter applications. BTA drilling range 20-100mm, max depth 2000mm. Single spindle with high torque for demanding deep hole operations.

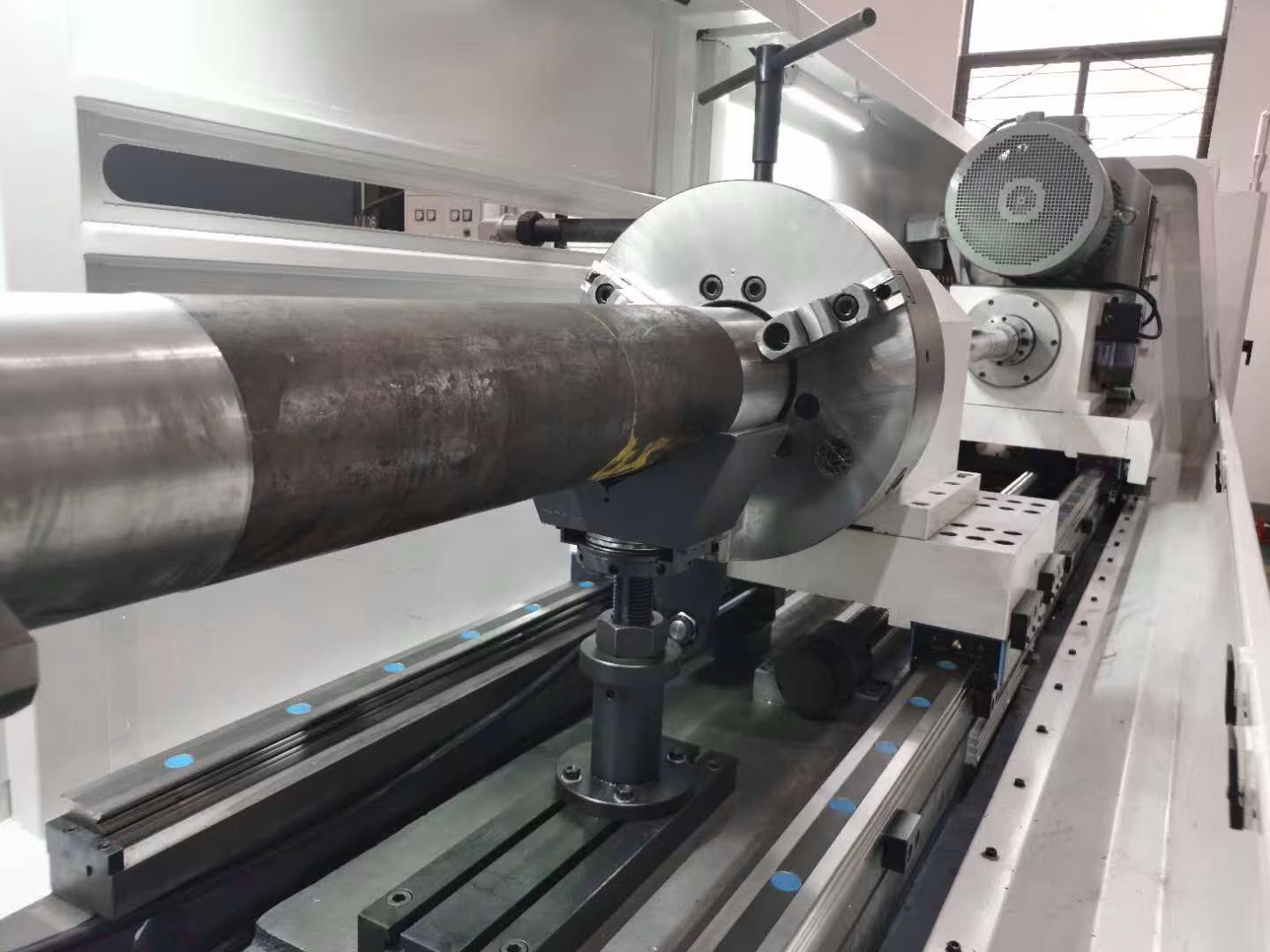

Gallery
Our BTA Deep Hole Drilling Machine is engineered for precise, deep drilling tasks in heavy-duty materials, offering superior performance across a wide range of industries, including aerospace, automotive, and manufacturing. With advanced features and an impressive drilling range, this machine is designed to deliver exceptional accuracy and productivity for demanding applications.
Specifications
Technical Specifications
| BTA Drilling Range | 20 – 100 mm |
| Max Drilling Depth | 2000 mm |
| Spindle Quantity | 1 |
| Workpiece Outer Diameter | 50 – 150 mm |
| Spindle Max RPM | 1000 rpm |
| Feeding Speed | 0 – 3000 mm/min |
| Workpiece Counter Rotation | 200 RPM |
| Spindle Motor Power | 37 kW |
| Feeding Motor Torque | 27 N.m |
| Workpiece Counter Rotary Motor | 0.75 kW |
| High-Pressure Coolant Motor | 15 kW |
| Chain Type Chip Removal | 0.2 kW |
| Max Coolant Pressure | 80 kg/cm² |
| Coolant Flow Rate | 200 L/min |
| Machine Total Power | 45 kW |
Features
Key Features
BTA Drilling Range
Φ20mm – Φ100mm drilling range for larger diameter hole drilling with high precision.
Maximum Drilling Depth
2000mm drilling depth capable of handling extremely deep holes for complex parts.
Spindle Speed
Maximum 1000 RPM for fast and efficient drilling operations.
Feeding Speed
Adjustable from 0 to 3000 mm/min for flexibility across different material types and thicknesses.
Workpiece Counter Rotation
200 RPM counter rotation for stable and precise machining of rotating parts.
High-Pressure Coolant System
Maximum pressure of 80 kg/cm² with flow rate of 200 L/min for efficient chip removal and temperature control.
Workpiece Outer Diameter
Supports parts ranging from Φ50mm to Φ150mm, accommodating a wide variety of component sizes.
Applications
Applications
Aerospace manufacturing — high-precision drilling of aircraft components and structural parts
Automotive industry — deep hole drilling in engine blocks, transmission parts, and other automotive components
Oil and gas — deep holes in demanding materials used in the oil and gas sector
Heavy machinery and industrial components — large-scale deep hole drilling operations in machinery parts
