Deep Hole Drilling Machine
RD2717-15M
6-Axis CNC Deep Hole Drilling Machine
6-axis CNC deep hole drilling machine. Drilling range 3-50mm, max depth 1500mm. FANUC 0i-MF CNC system with milling spindle for multi-process capability.

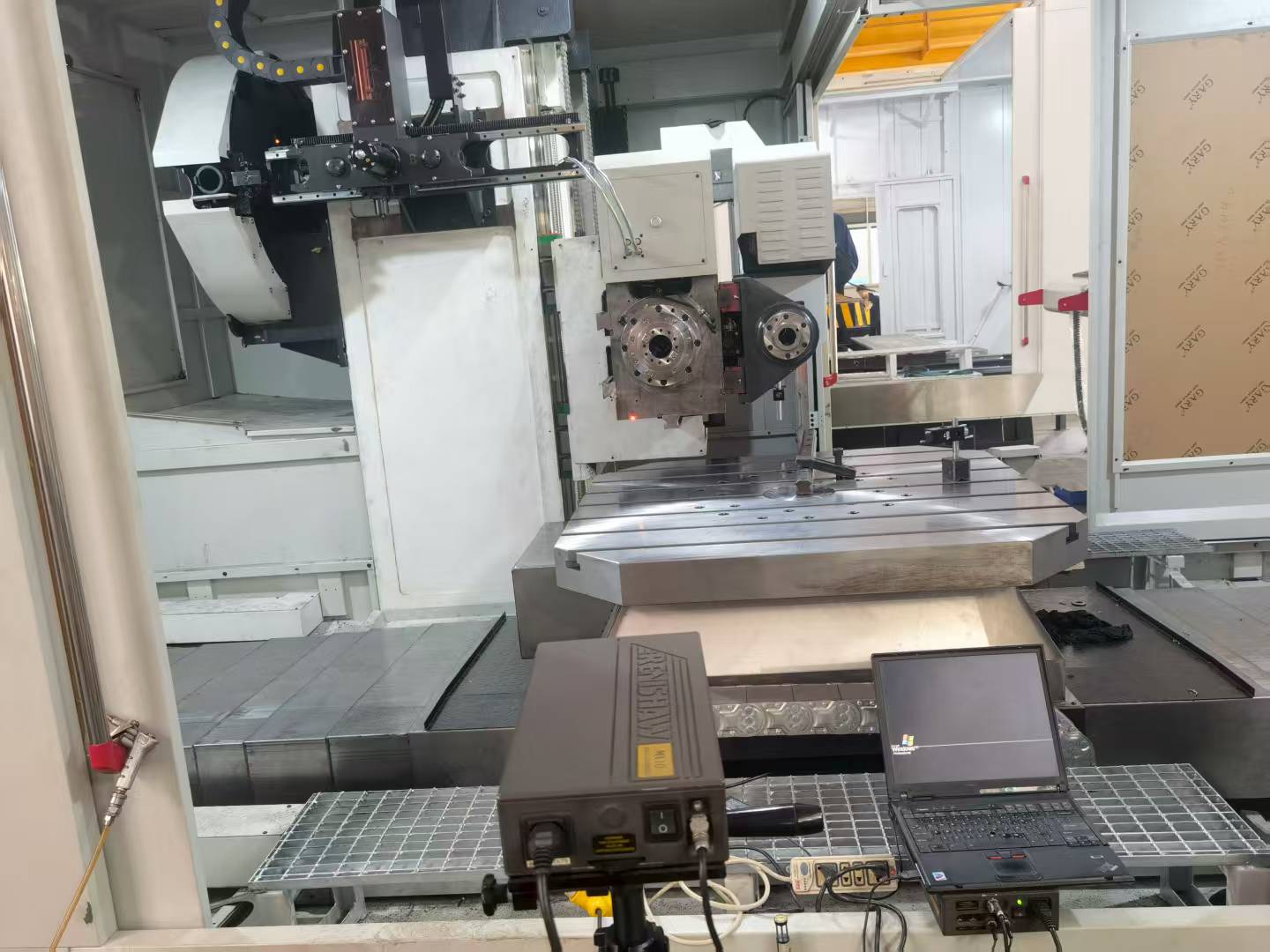

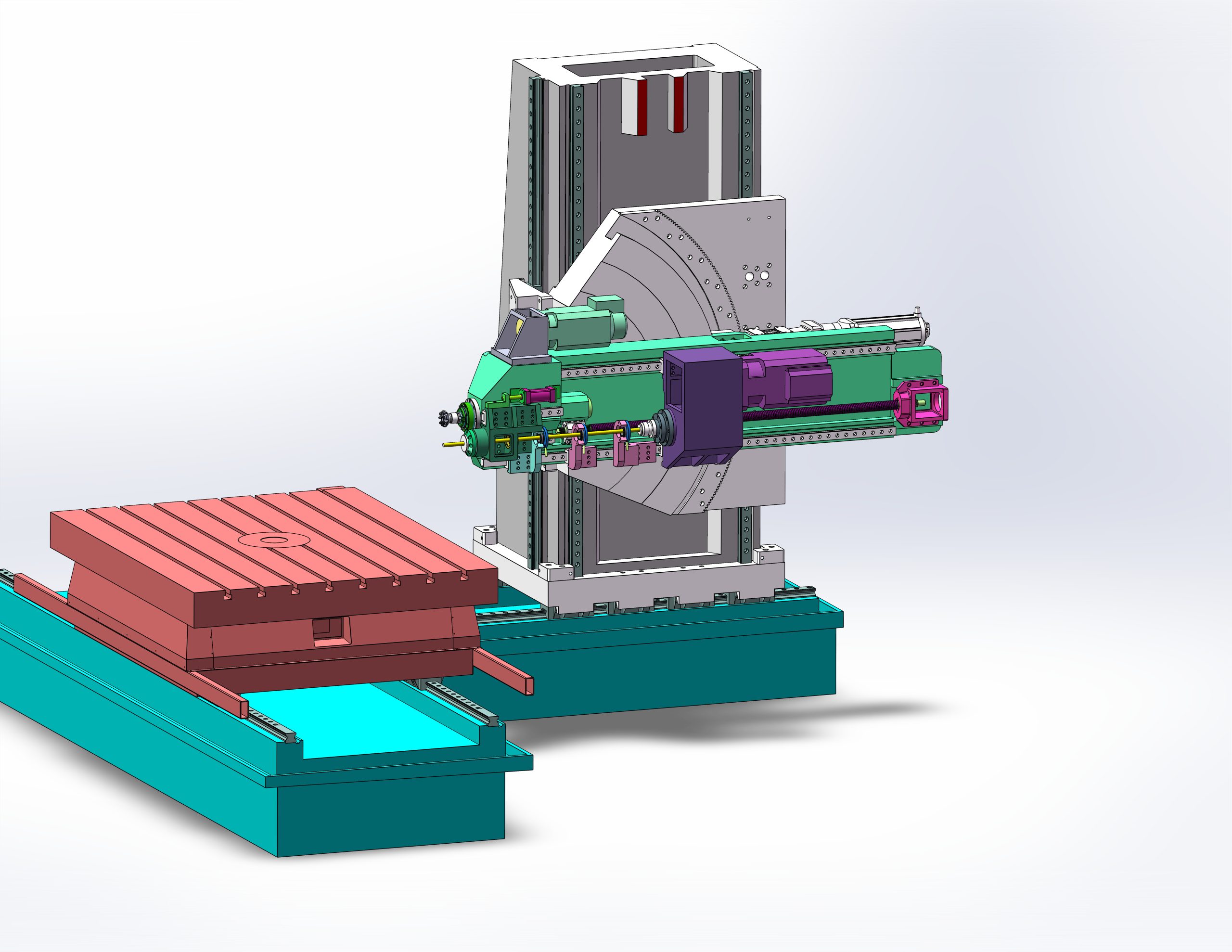

Gallery
Specifications
Technical Specifications
| Drilling Range | 3 – 50 mm |
| Max Drilling Depth | 1500 mm |
| Milling Capacity | 250 cc/min |
| Rigid Tapping | ≤ M24 |
| X-Axis Travel | 2700 mm |
| Y-Axis Travel | 1700 mm |
| Z-Axis Travel | 1000 mm |
| W-Axis Travel | 1550 mm |
| A-Axis Ram Tilting | ±65° |
| B-Axis Rotary | 360° continuous |
| Worktable Size | 1800 × 2200 mm |
| Max Load | 15,000 kg |
| Gun Drilling Spindle Speed | 6000 rpm |
| Milling Spindle Speed | 5000 rpm |
| Milling Spindle Taper | BT50 |
| Spindle Power | 15 kW / 18.5 kW |
| CNC Controller | FANUC 0i-MF |
| Minimum Indexing | 0.001° |
| Machine Weight | 42,000 kg |
| Machine Dimensions | 9200 × 6300 × 5000 mm |
Features
Key Features
FANUC 0i-MF CNC System
Reliable and stable control system for seamless multi-axis deep hole drilling operations.
FANUC Servo Motors
Six coordinate axis and main axis servo motors with superior low-speed performance and high torque.
Multi-Process Integration
Combines gun drilling, milling, and tapping in a single 6-axis platform.
High-Rigidity Structure
Reinforced machine frame for both milling forces and deep hole drilling axial loads.
Precision Ball Screw & Linear Guide
High-precision components guaranteeing accurate positioning and enhanced machining results.
Applications
Applications
Complex machining requiring drilling and milling
Large mold plate processing
Aerospace component manufacturing
Energy sector part drilling and milling
