Deep Hole Drilling Machine
RD2717-15M
6-Axis CNC Deep Hole Drilling Machine
6-axis CNC deep hole drilling machine integrating gun drilling, milling, and tapping. Drilling range 3-50mm, depth 1500mm. FANUC 0i-MF CNC control.

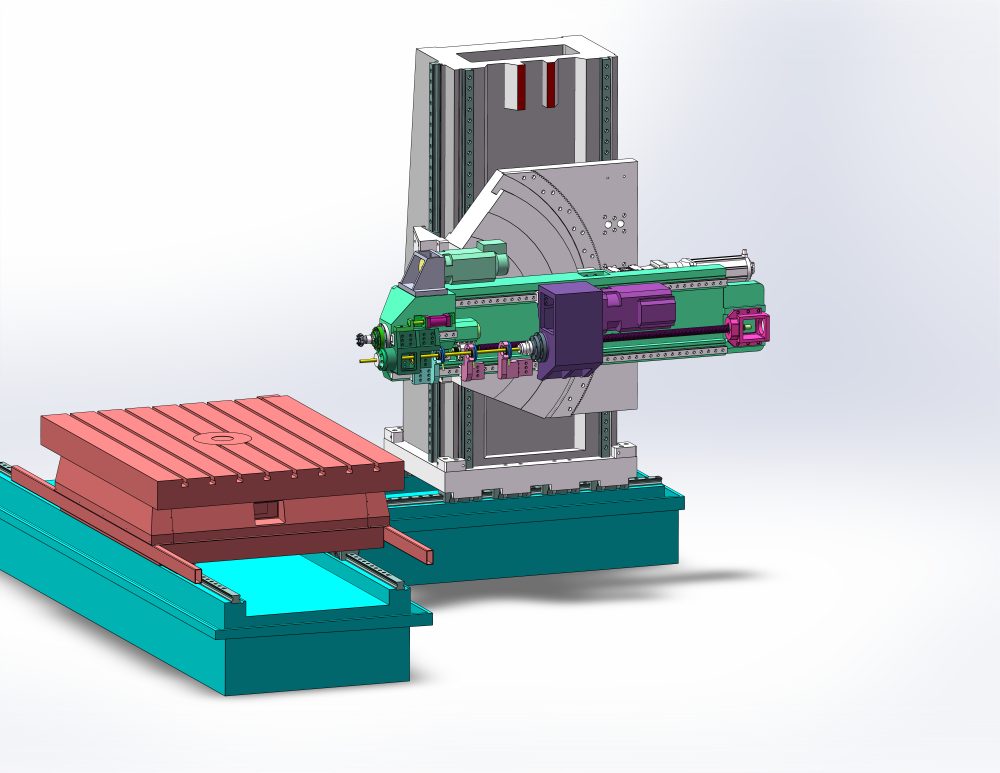

Gallery
Our 6-Axis CNC Deep Hole Drilling Machine is designed to deliver precision and reliability for deep hole applications across a variety of industries, including aerospace, automotive, and mold making. Combining the latest FANUC 0i-MF CNC system with advanced servo motors and high-precision components, this machine is the perfect solution for complex and high-volume drilling tasks.
Specifications
Technical Specifications
| Gun Drilling Range | 3 – 50 mm |
| Drilling Depth | 1500 mm |
| Tool Holder | ER50 |
| Gun Drilling Spindle Power | 15 kW / 18.5 kW |
| Gun Drilling Continuous Torque | 128 N.m |
| Milling Capacity | 250 cc/min |
| Rigid Tapping | ≤ M24 |
| Milling Spindle Max RPM | 5000 rpm |
| Milling Spindle Taper | BT50 |
| Milling Spindle Power | 15 kW / 18.5 kW |
| Milling Continuous Torque | 215 N.m |
| Coolant System | Coolant Through Spindle (CTS) |
| X-Axis Travel | 2700 mm |
| Y-Axis Travel | 1700 mm |
| Z-Axis Travel | 1000 mm |
| W-Axis Travel | 1550 mm |
| A-Axis Ram Tilting | ±65° |
| B-Axis Rotary | 360° continuous |
| Worktable Size | 1800 × 2200 mm |
| Max Load | 15,000 kg |
| T-Slot Size | 22 mm |
| T-Slot Spacing | 220 mm |
| CNC Controller | FANUC 0i-MF |
| Minimum Indexing | 0.001° |
| Machine Weight | 42,000 kg |
| Machine Dimensions | 9200 × 6300 × 5000 mm |
Features
Key Features
FANUC 0i-MF CNC System
Stable performance and user-friendly programming interface for seamless deep hole drilling control.
FANUC Servo Motors
Six coordinate axis and main axis servo motors with superior low-speed performance and high torque.
Precision Ball Screw & Linear Guide
High-precision components guaranteeing accurate positioning and enhanced machining results.
Advanced Cooling System
Automatically adjusts flow rate and pressure based on hole size, material, and required precision.
Dynamic Precision Detection
British Renishaw laser interferometer for real-time compensation and consistently precise machining.
Mold Industry Optimization
RD-M Series designed specifically for challenging deep hole processes in mold manufacturing.
Applications
Applications
Mold industry deep hole drilling — high precision and efficiency for mold manufacturing
Aerospace and automotive component drilling — intricate parts with tight tolerances
Oil and gas industry equipment — high-precision components for demanding environments
